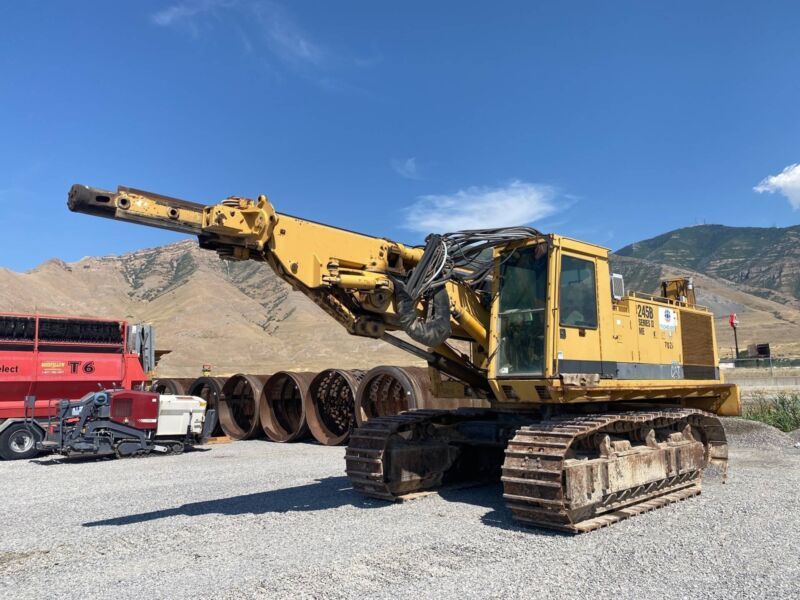

Caterpillar 245B Series II
Browse All Caterpillar or Shovel Models
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 25.56 ft in (7790 mm) |
| Max Vertical Wall Dig Depth | 16.64 ft in (5070 mm) |
| Max Cutting Height | 37.8 ft in (11520 mm) |
| Max Dump Height | 24.94 ft in (7600 mm) |
| Max Reach On Ground | 40.72 ft in (12410 mm) |
| Backhoe Boom / Stick | Stick 8'6" (2590mm) |
Backhoe Boom / Stick 2
| Max Cutting Height | 37.24 ft in (11350 mm) |
| Max Dump Height | 24.55 ft in (7480 mm) |
| Max Vertical Wall Dig Depth | 17.59 ft in (5360 mm) |
| Max Dig Depth | 27.56 ft in (8400 mm) |
| Max Reach On Ground | 42.1 ft in (12830 mm) |
| Backhoe Boom / Stick | Stick 10'6" (3200mm) |
Backhoe Boom / Stick 3
| Max Cutting Height | 38.42 ft in (11710 mm) |
| Max Dump Height | 25.83 ft in (7870 mm) |
| Max Vertical Wall Dig Depth | 21.2 ft in (6460 mm) |
| Max Dig Depth | 31.5 ft in (9600 mm) |
| Backhoe Boom / Stick | Stick 14'6" (4420mm) |
| Max Reach On Ground | 45.74 ft in (13940 mm) |
Dimensions
| Width Over Tracks | 11.85 ft in (3610 mm) |
| Height To Top Of Cab | 11.82 ft in (3600 mm) |
| Ground Clearance | 2.5 in (760 mm) |
| Length Of Tracks | 18.41 ft in (5610 mm) |
| Upper Structure Ground Clearance | 3.48 ft in (1060 mm) |
Loading Shovel
| Max Dig Reach | 31.14 ft in (9490 mm) |
| Max Dump Height | 18.5 ft in (5638 mm) |
| Max Cutting Height | 33.76 ft in (10290 mm) |
Undercarriage
| Loading Shovel Shoe Width | 24.02 in (610 mm) |
| Track Gauge | 10.67 ft in (3251 mm) |
| Loading Shovel Ground Pressure | 16 psi (110.32 kPa) |
| Backhoe Shoe Width 1 | 29.93 in (760 mm) |
| Backhoe Operating Weight - Shoe 1 | 143631.18 lb (65150 kg) |
| Max Travel Speed | 1.97 mph (3.17 km/h) |
| Backhoe Shoe Width 3 | 35.83 in (910 mm) |
| Backhoe Ground Pressure - Shoe 2 | 15.1 psi (104.12 kPa) |
| Backhoe Ground Pressure - Shoe 1 | 12.3 psi (84.81 kPa) |
| Number Of Track Shoes Per Side | 45 |
| Loading Shovel Operating Weight | 146122.4 lb (66280 kg) |
| Backhoe Ground Pressure - Shoe 3 | 10.4 psi (71.71 kPa) |
| Backhoe Shoe Width 2 | 24.02 in (610 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3406 |
| Gross Power | 360 hp (268.5 kw) |
| Displacement | 891 cu in (14.6 L) |
Operational
| Fuel Capacity | 180.2 gal (682 L) |
| Cooling System Fluid Capacity | 20.5 gal (77.6 L) |
| Engine Oil Capacity | 12.3 gal (46.5 L) |
| Hydraulic System Fluid Capacity | 192.6 gal (729 L) |
| Swing Speed | 4.7 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
