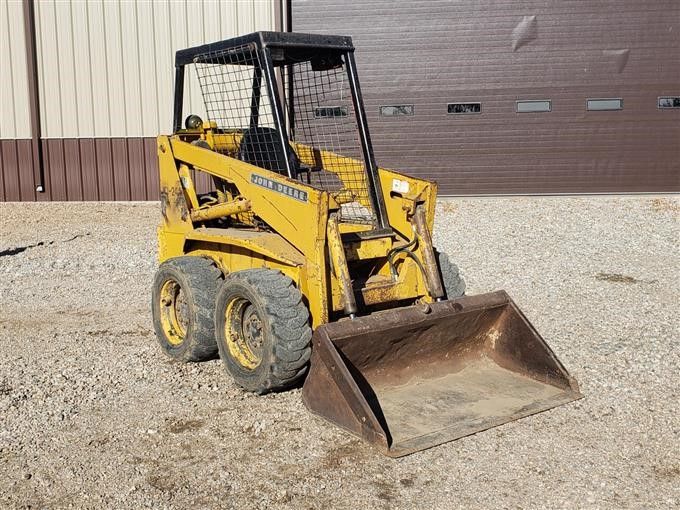

John Deere JD24A
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.83 ft in (2990 mm) |
| Width Over Tires | 4.1 ft in (1510 mm) |
| Ground Clearance | 7 in (178 mm) |
| Height To Top Of Cab | 9 ft in (2743.2 mm) |
| Wheelbase | 2.92 ft in (889 mm) |
| Length W/O Bucket | 7.09 ft in (2160 mm) |
| Clearance At Max Lift And Dump | 7 ft in (2130 mm) |
| Reach At Max Lift And Dump | 1.42 in (418 mm) |
| Turning Radius From Center - Machine Rear | 4.25 in (1330 mm) |
Engine
| Engine Make | 2356 |
| Engine Model | Y-112, 4-cylinder, 4-stroke |
| Net Power | 37 hp (27.6 kw) |
| Aspiration | Hydrostatic |
| Displacement | 112 cu in (1.9 L) |
Operational
| Operational Weight | 5483 lb (2487 kg) |
| Fuel Capacity | 24 gal (90.8 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
| Hydraulic System Fluid Capacity | 18 gal (68.1 L) |
| Max Speed | 6.5 mph (10.5 km/h) |
| Operating Speed | -6.5 mph (-10.5 km/h) |
| Tire Size | 10-16.5,steel-cap,4PR/6.50-16,lug tread,solid rubber |
| Operating Voltage | 12 V |
Loader
| Operating Load Rating | 1349.3 lb (612 kg) |
| Tipping Angle | 2700.7 degrees |
| Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic
| Pump Type | Pressure system with full-flow filter |
