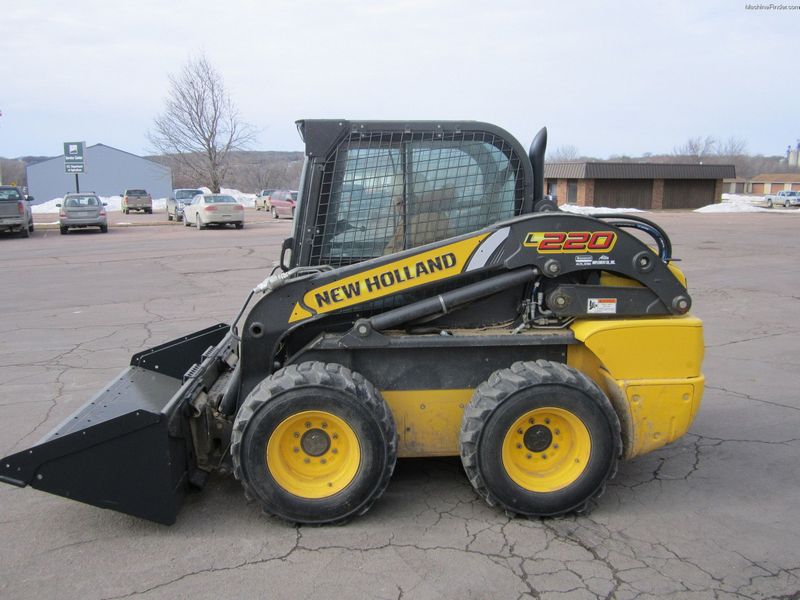

New Holland L220
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 8 in (203 mm) |
| Wheelbase | 3.71 ft in (1128 mm) |
| Bucket Hinge Pin | 120.99 in (3073 mm) |
| Dump Angle | 52 degrees |
| Angle Of Departure | 25 degrees |
| Rollback, Bucket At Full Height | 88 degrees |
| Rollback, Bucket On Ground | 34 degrees |
| Top Of Rops | 78.67 in (1998 mm) |
| Overall Width | 5.76 ft in (1755 mm) |
| Bottom Of Level Bucket, Fully Raised | 114.26 in (2902 mm) |
Engine
| Air Intake | Turbocharged Aftercooled with external EGR |
| Fuel Injection | HPCR Direct |
| Horsepower Per Sae J1349 Net | 64 hp (47.8 kw) |
| Horsepower Per Sae J1349 Gross | 67 hp (50 kw) |
| Engine Model | N844LTA |
| Rated Speed | 2800 rpm |
| Peak Torque | 153.5 lb ft (208 Nm) |
| Displacement | 134.3 cu in (2.2 L) |
| Bore | 3.4 in (84 mm) |
| Stroke | 4 in (100 mm) |
Capacities
| Engine Oil With Filter | 1.9 gal (7.1 L) |
| Chain Tanks | 2 gal (7.4 L) |
| Fuel Tank | 19.5 gal (73.8 L) |
Performance
| Tipping Load | 3999.2 lb (1814 kg) |
| Operating Weight | 6459.6 lb (2930 kg) |
| Breakout Force, Bucket Cylinder | 5283.1 lb (23.5 kN) |
| Breakout Force, Lift Cylinder | 3439.6 lb (15.3 kN) |
| Rated Operating Load, 50% Tip | 1995.2 lb (905 kg) |
Power Train
| Travel Speed, Low Range | 7.8 mph (12.6 km/h) |
| Travel Speed, High Range | 11.4 mph (18.4 km/h) |
Weights
| Operating Weight | 6459.6 lb (2930 kg) |
| Shipping | 6162 lb (2795 kg) |
Hydraulic System
| Standard Pump Flow | 20.6 gal/min (78 L/min) |
| Optional High Flow | 30.7 gal/min (116.3 L/min) |
| Relief Valve Pressure | 3046 psi (21001.5 kPa) |
