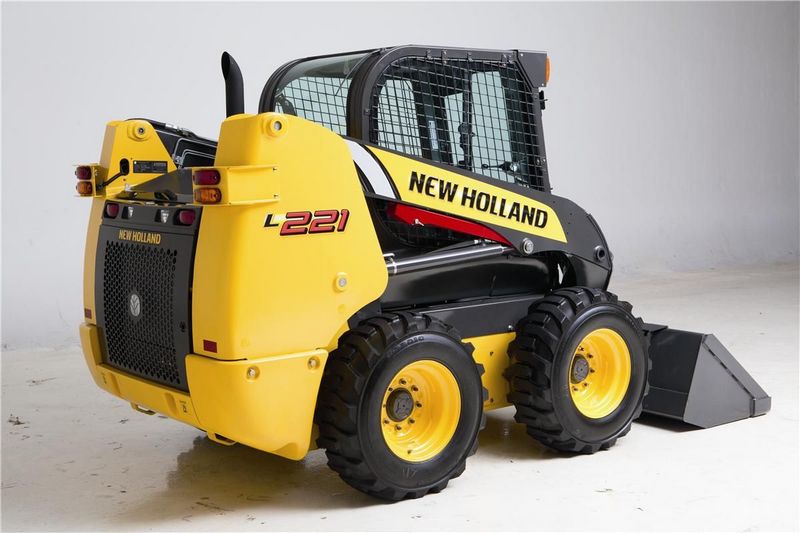

New Holland L221
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 8 in (203 mm) |
| Wheelbase | 3.71 ft in (1128 mm) |
| Bucket Hinge Pin | 123 in (3124 mm) |
| Dump Angle | 40 degrees |
| Angle Of Departure | 25 degrees |
| Rollback, Bucket At Full Height | 99 degrees |
| Rollback, Bucket On Ground | 31 degrees |
| Top Of Rops | 78.67 in (1998 mm) |
| Overall Width | 5.76 ft in (1755 mm) |
| Bottom Of Level Bucket, Fully Raised | 116.15 in (2950 mm) |
Engine
| Air Intake | Turbocharged with external EGR |
| Fuel Injection | HPCR Direct |
| Horsepower Per Sae J1349 Net | 68 hp (50.8 kw) |
| Horsepower Per Sae J1349 Gross | 74 hp (55.2 kw) |
| Engine Model | F5H FL463 |
| Rated Speed | 2500 rpm |
| Peak Torque | 231.6 lb ft (314 Nm) |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.4 in (110 mm) |
Capacities
| Engine Oil With Filter | 2.5 gal (9.4 L) |
| Chain Tanks | 6.9 gal (26 L) |
| Fuel Tank | 19.5 gal (73.8 L) |
Performance
| Tipping Load | 3999.2 lb (1814 kg) |
| Operating Weight | 6966.7 lb (3160 kg) |
| Breakout Force, Bucket Cylinder | 7261.4 lb (32.3 kN) |
| Breakout Force, Lift Cylinder | 4563.7 lb (20.3 kN) |
| Rated Operating Load, 50% Tip | 1995.2 lb (905 kg) |
Power Train
| Travel Speed, Low Range | 7.8 mph (12.6 km/h) |
| Travel Speed, High Range | 11.4 mph (18.4 km/h) |
Weights
| Operating Weight | 6966.7 lb (3160 kg) |
| Shipping | 6669 lb (3025 kg) |
Hydraulic System
| Standard Pump Flow | 24.4 gal/min (92.4 L/min) |
| Optional High Flow | 33.2 gal/min (125.7 L/min) |
| Relief Valve Pressure | 3046 psi (21001.5 kPa) |
