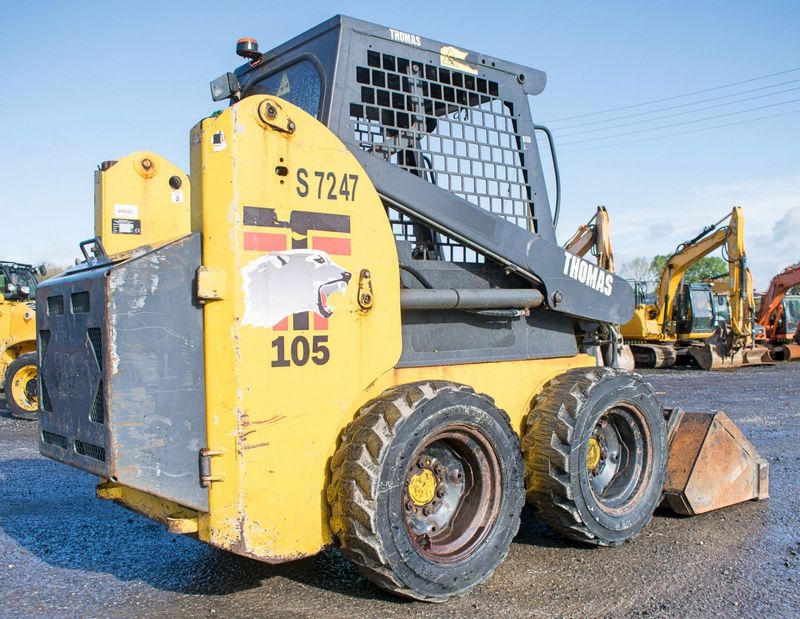

Thomas 105
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.59 ft in (2921 mm) |
| Width Over Tires | 4.23 ft in (1289 mm) |
| Ground Clearance | 7.01 in (178 mm) |
| Height To Top Of Cab | 5.92 ft in (1803 mm) |
| Wheelbase | 2.77 ft in (843 mm) |
| Length W/O Bucket | 7.59 ft in (2311 mm) |
| Clearance At Max Lift And Dump | 6.84 ft in (2083 mm) |
| Reach At Max Lift And Dump | 23.51 in (597 mm) |
| Turning Radius From Center - Machine Rear | 54.02 in (1372 mm) |
| Turning Radius From Center - Inc Bucket | 67.37 in (1711 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V1305B |
| Gross Power | 33 hp (24.7 kw) |
| Power Measured @ | 3000 rpm |
| Displacement | 81.5 cu in (1.4 L) |
Operational
| Operational Weight | 3700 lb (1678.3 kg) |
| Fuel Capacity | 11.3 gal (42.8 L) |
| Hydraulic System Fluid Capacity | 9 gal (34.1 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
Loader
| Breakout Force | 1750 lb (793.8 kg) |
| Operating Load Rating | 1000 lb (453.6 kg) |
| Tipping Angle | 2000 degrees |
| Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic
| Pump Type | Hydrostatic |
| Pump Flow Capacity | 8.7 gal/min (33 L/min) |
| Relief Valve Pressure | 2150 psi (14823.8 kPa) |
