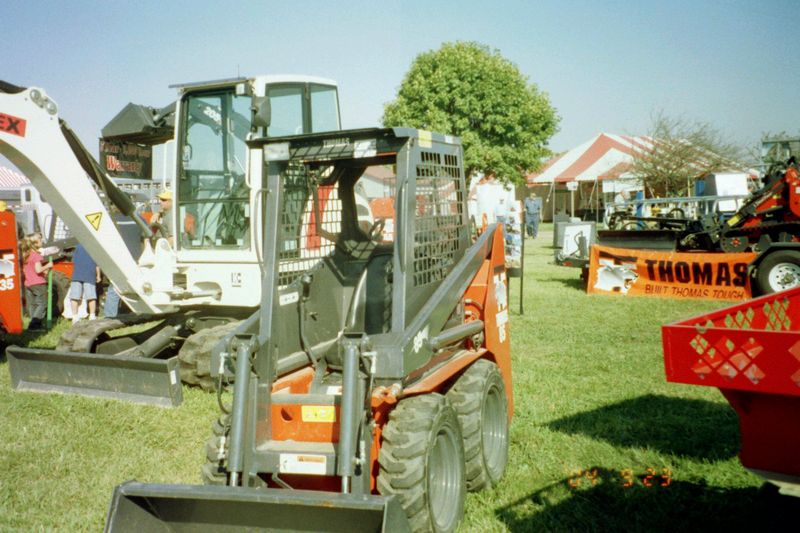

Thomas 85
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 8.77 ft in (2673 mm) |
| Width Over Tires | 2.98 ft in (908 mm) |
| Ground Clearance | 6.75 in (171.45 mm) |
| Height To Top Of Cab | 5.95 ft in (1813 mm) |
| Wheelbase | 2.76 ft in (840 mm) |
| Length W/O Bucket | 6.96 ft in (2121 mm) |
| Clearance At Max Lift And Dump | 5.76 ft in (1753 mm) |
| Reach At Max Lift And Dump | 14.49 in (368 mm) |
| Turning Radius From Center - Machine Rear | 38.08 in (967 mm) |
| Turning Radius From Center - Inc Bucket | 60.2 in (1529 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D722B |
| Gross Power | 19.8 hp (14.8 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 43.9 cu in (0.8 L) |
Operational
| Operational Weight | 2983 lb (1353.1 kg) |
| Fuel Capacity | 14.6 gal (55.3 L) |
| Max Speed | 5 mph (8.1 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 2200 lb (998 kg) |
| Operating Load Rating | 850 lb (385.6 kg) |
| Tipping Angle | 1800 degrees |
| Bucket Capacity | 0.3 yd3 (0.3 m3) |
Hydraulic
| Pump Flow Capacity | 8 gal/min (30.3 L/min) |
| Relief Valve Pressure | 2100 psi (14479 kPa) |
