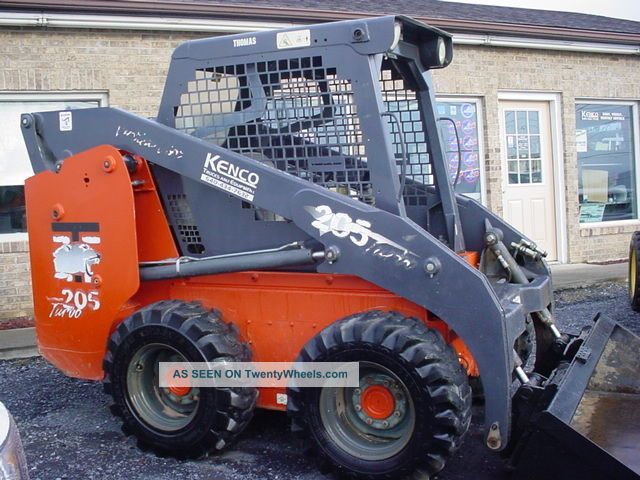

Thomas 205
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.65 ft in (3550 mm) |
| Width Over Tires | 5.67 ft in (1727 mm) |
| Ground Clearance | 8.75 in (222 mm) |
| Height To Top Of Cab | 6.96 ft in (2121 mm) |
| Wheelbase | 3.51 ft in (1069 mm) |
| Length W/O Bucket | 9.32 ft in (2838 mm) |
| Clearance At Max Lift And Dump | 7.92 ft in (2413 mm) |
| Reach At Max Lift And Dump | 31.5 in (800 mm) |
| Turning Radius From Center - Machine Rear | 33.76 in (857.5 mm) |
| Turning Radius From Center - Inc Bucket | 41.8 in (1061.5 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | V2003MT Turbo |
| Gross Power | 59.5 hp (44.4 kw) |
| Net Power | 56 hp (41.8 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | turbocharged |
| Displacement | 122 cu in (2 L) |
Operational
| Operational Weight | 7200 lb (3265.9 kg) |
| Fuel Capacity | 21.2 gal (80 L) |
| Max Speed | 7.8 mph (12.4 km/h) |
| Hydraulic System Fluid Capacity | 17.5 gal (66 L) |
| Tire Size | 12.00x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 4900 lb (2222.7 kg) |
| Operating Load Rating | 2100 lb (952.6 kg) |
Hydraulic
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
