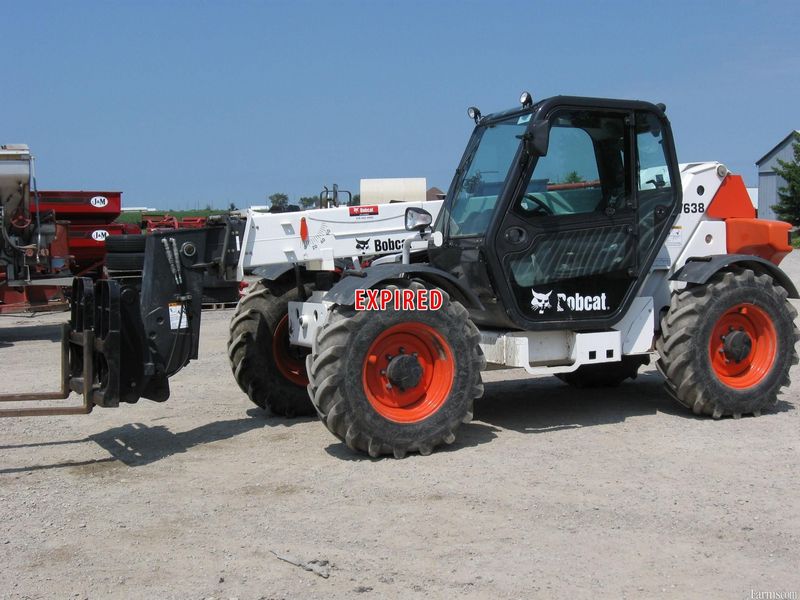

Bobcat V 638
Browse All Bobcat or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.83 ft in (5129.79 mm) |
| Width Over Tires | 6.83 ft in (2081.79 mm) |
| Overall Height | 7.33 ft in (2234.19 mm) |
| Wheelbase | 3.17 ft in (966.22 mm) |
Lift
| Max Lift Height | 36.5 ft in (11125.2 mm) |
| Max Forward Reach | 25.25 ft in (7696.2 mm) |
| Max Load At Max Reach | 850 lb (385.56 kg) |
| Max Load At Max Height | 5000 lb (2267.97 kg) |
| Max Lift Capacity | 6700 lb (3039.07 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44T Turbo-Charged / |
| Gross Power | 100 hp (74.6 kw) |
| Displacement | 269 cu in (4.5 L) |
Operational
| Operating Weight | 18275 lb (8289.5 kg) |
Transmission
| Max Speed - Forward | 18.4 mph (29.7 km/h) |
| Max Speed - Reverse | 4.7 mph (7.6 km/h) |
Hydraulic
| Pump Flow Capacity | 21 gal/min (79.5 L/min) |
