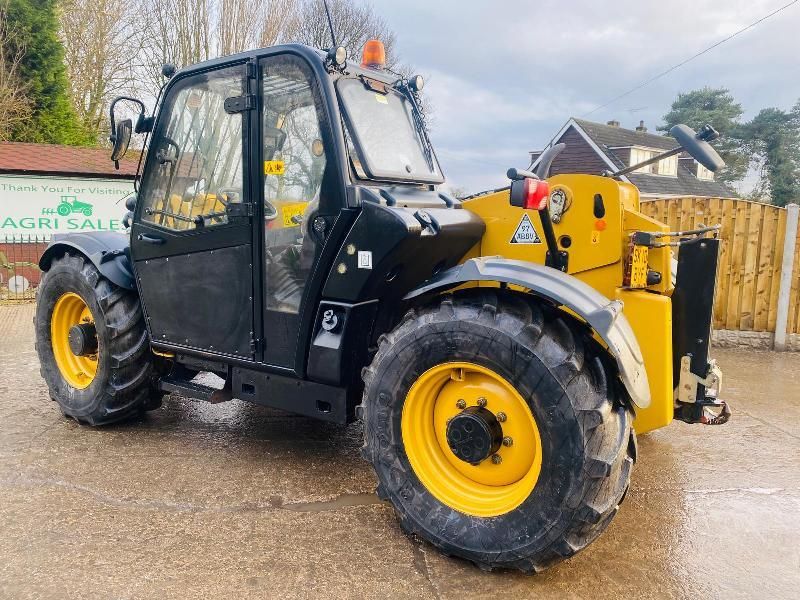

Caterpillar TH406
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.17 ft in (4621 mm) |
| Ground Clearance | 1.35 ft in (408.94 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 7.63 ft in (2323 mm) |
| Wheelbase | 9.68 ft in (2950 mm) |
| Height | 7.6 ft in (2316.48 mm) |
| Length - Fork Face | 15.1 ft in (4.61 m) |
| Turning Radius - Over Tires | 12.14 ft in (3.71 m) |
| Turning Radius Outside Tires | 12.34 ft in (3760 mm) |
| Wheel Base | 9.6 ft in (2.93 m) |
| Width | 7.81 ft |
| Length - Front Of Tire | 14 ft in (4.27 m) |
| Turning Radius - Over Forks | 15.3 ft in (4.67 m) |
Lift
| Max Lift Height | 20.02 ft in (6100 mm) |
| Max Forward Reach | 10.21 ft in (3110 mm) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Load At Max Reach | 3306.94 lb (1500 kg) |
| Max Lift Capacity | 8157.11 lb (3700 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | C4.4 DITAAC |
| Gross Power | 101 hp (75.4 kw) |
| Max Torque | 302.5 lb ft (410 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.5 cu in (4.4 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (126.8 mm) |
| Engine Model | Cat C4.4 DITAAC |
| Maximum Torque - Standard | 302.4 lb ft (410 Nm) |
| Maximum Torque - Optional | 365.8 lb ft (496 Nm) |
Operational
| Operating Weight | 15873.3 lb (7200 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 100 amps |
| Drawbar Pull | 18518.9 lb (8400 kg) |
| Tire Size | 15.5/80-24 16PR |
Transmission
| Transmission Type | Powersyncro |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 13.1 mph (21 km/h) |
Tires
| Standard | 15.5/80-24 16PR |
Weights
| Operating Weight | 15873.3 lb (7200 kg) |
Tires
| Optional Construction | 400/80 R24 Power CL, 15.50 x 25 SGL |
| Optional Agriculture | 460/70 R24 XMCL Radial |
Hydraulic
| Pump Type | Piston pump, variable displacement load sensing axial |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
Hydraulic System
| Pump Type | Variable displacement axial piston pump |
| Auxiliary Hydraulic Supply - Intermittent | 21.1 gal/min |
| Auxiliary Hydraulic Supply - Continuous | 15.8 gal/min |
| Maximum System Pressure | 3626 psi |
| Maximum Pump Flow | 39.6 gal/min |
| Auxiliary Hydraulic Supply | 15.8 gal/min |
Brakes
| Parking Brake | mechanical on front axle |
Operating Specifications
| Rated Load Capacity | 8150 lb (3696.8 kg) |
| Maximum Lift Height | 20 ft in (6.1 m) |
| Maximum Forward Reach | 10.2 ft in (3.2 m) |
| Top Travel Speed | 25 mph (40.3 km/h) |
| Load At Maximum Height | 5500 lb (2494.8 kg) |
| Load At Maximum Reach | 3300 lb (1496.9 kg) |
| Load At Maximum Reach - No Stabilizers | 3300 lb (1496.9 kg) |
| Load At Maximum Height - No Stabilizers | 5500 lb (2494.8 kg) |
| Load Placing Height | 20 ft in (6.1 m) |
Service Refill Capacities
| Fuel Tank | 39.6 gal (150 L) |
| Hydraulic Tank | 23.8 gal (90.1 L) |
Boom Performance
| Boom Up | 5 s |
| Boom Down | 4 s |
| Tele In | 4.5 s |
| Tele Out | 5 s |
| Crowd Forward - Dump | 3 s |
| Crowd Backward | 3 s |
| Combined - Up And Out | 8 s |
| Combined - Down And In | 6 s |
| Drawbar Pull - Basic | 18525 lb (8402.8 kg) |
| Bucket Breakout Force | 12570 lb (5701.7 kg) |
| Boom Breakout Force | 13830 lb (6273.2 kg) |
| Drawbar Pull - Premium | 19513 lb (8851 kg) |
Transmission Speeds
| Forward - 4 | 19.8 mph (31.9 km/h) |
| Forward - 1 | 4.3 mph (7 km/h) |
| Forward - 2 | 7.5 mph (12 km/h) |
| Forward - 3 | 13 mph (21 km/h) |
| Reverse - 1 | 4.3 mph (7 km/h) |
| Reverse - 2 | 7.5 mph (12 km/h) |
| Reverse - 3 | 13 mph (21 km/h) |
| Forward - 5 | 25 mph (40.3 km/h) |
