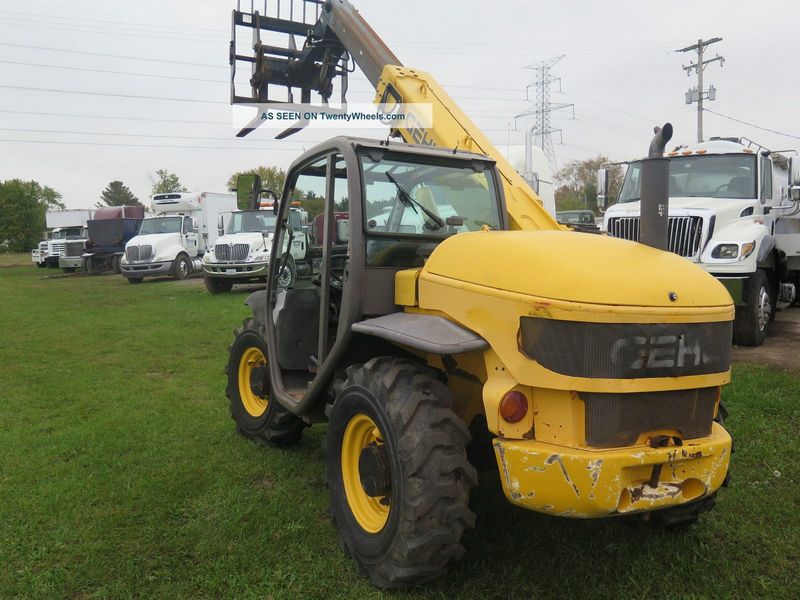

Gehl CT5-16
Browse All Gehl or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 11.42 ft in (290 mm) |
| Width Over Tires | 5.91 ft in (1800 mm) |
| Overall Height | 6.57 ft in (2000 mm) |
| Turning Radius Outside Tires | 10.83 ft in (3300 mm) |
Lift
| Max Lift Height | 16.18 ft in (4930 mm) |
| Max Forward Reach | 9.68 ft in (2950 mm) |
| Max Load At Max Reach | 2200 lb (997.91 kg) |
| Max Load At Max Height | 5000 lb (2267.97 kg) |
| Max Lift Capacity | 5000 lb (2267.97 kg) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2351 |
| Engine Model | 1103-C33 |
| Gross Power | 58 hp (43.3 kw) |
| Power Measured @ | 1400 rpm |
| Max Torque | 164 lb ft (222.4 Nm) |
| Displacement | 201 cu in (3.3 L) |
Operational
| Operating Weight | 11556 lb (5241.8 kg) |
| Fuel Capacity | 24.9 gal (94 L) |
| Hydraulic System Fluid Capacity | 27.1 gal (102.5 L) |
| Drawbar Pull | 7644 lb (3467.3 kg) |
| Tire Size | 12x18 SGI 12PR |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 16 mph (25.8 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 23 gal/min (87.1 L/min) |
| Relief Valve Pressure | 3336 psi (23000.9 kPa) |
