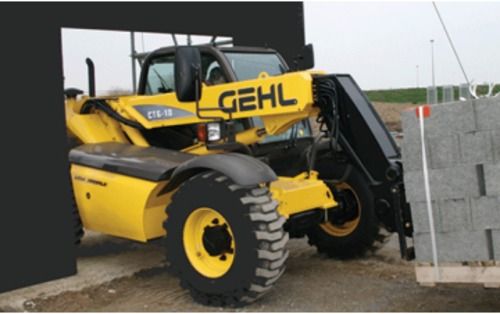

Gehl CT6-18 Low Profile
Browse All Gehl or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 15.75 ft in (400 mm) |
| Width Over Tires | 6.57 ft in (2000 mm) |
| Overall Height | 6.89 ft in (2100 mm) |
| Turning Radius Outside Tires | 11.82 ft in (3600 mm) |
Lift
| Max Lift Height | 17.92 ft in (5460 mm) |
| Max Forward Reach | 10.9 ft in (3320 mm) |
| Max Load At Max Reach | 2600 lb (1179.35 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104-C44 |
| Gross Power | 84 hp (62.7 kw) |
| Power Measured @ | 1400 rpm |
| Max Torque | 223 lb ft (302.4 Nm) |
| Displacement | 268 cu in (4.4 L) |
Operational
| Operating Weight | 12996 lb (5894.9 kg) |
| Fuel Capacity | 27 gal (102 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Drawbar Pull | 14320 lb (6495.5 kg) |
| Tire Size | 15x19.5 L2 12PR |
Transmission
| Transmission Type | 4-speed power-shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18 mph (29 km/h) |
| Max Speed - Reverse | 21 mph (33 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 24 gal/min (90.9 L/min) |
| Relief Valve Pressure | 3770 psi (25993.3 kPa) |
