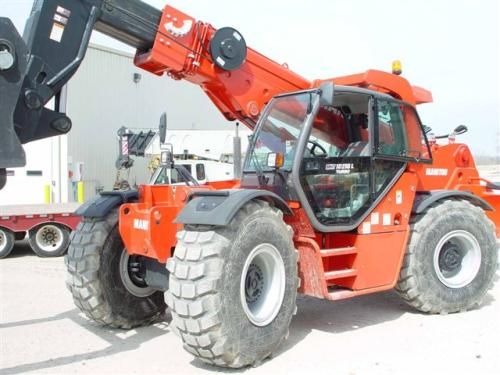

Manitou MHT 10210
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 22.5 ft in (6858 mm) |
| Ground Clearance | 19 ft in (482.6 mm) |
| Width Over Tires | 8.75 ft in (2667 mm) |
| Overall Height | 9.75 ft in (2971.8 mm) |
| Wheelbase | 12 ft in (3657.6 mm) |
| Turning Radius Outside Tires | 19.83 ft in (6044.19 mm) |
Lift
| Max Lift Height | 31.75 ft in (9677.4 mm) |
| Max Forward Reach | 19 ft in (5791.2 mm) |
| Max Load At Max Height | 46000 lb (20865.25 kg) |
| Max Lift Capacity | 46000 lb (20865.25 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo Diesel |
| Gross Power | 175 hp (130.5 kw) |
| Max Torque | 498 lb ft (675.2 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 259 cu in (4.3 L) |
Operational
| Operating Weight | 59282 lb (26889.9 kg) |
| Fuel Capacity | 53 gal (200.7 L) |
| Hydraulic System Fluid Capacity | 77 gal (291.5 L) |
| Tire Size | 23.5 R 25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 16 mph (25.8 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic
| Pump Type | two electronically regulated variable displacement piston pumps |
| Pump Flow Capacity | 45 gal/min (170.4 L/min) |
| Relief Valve Pressure | 5000 psi (34473.8 kPa) |
