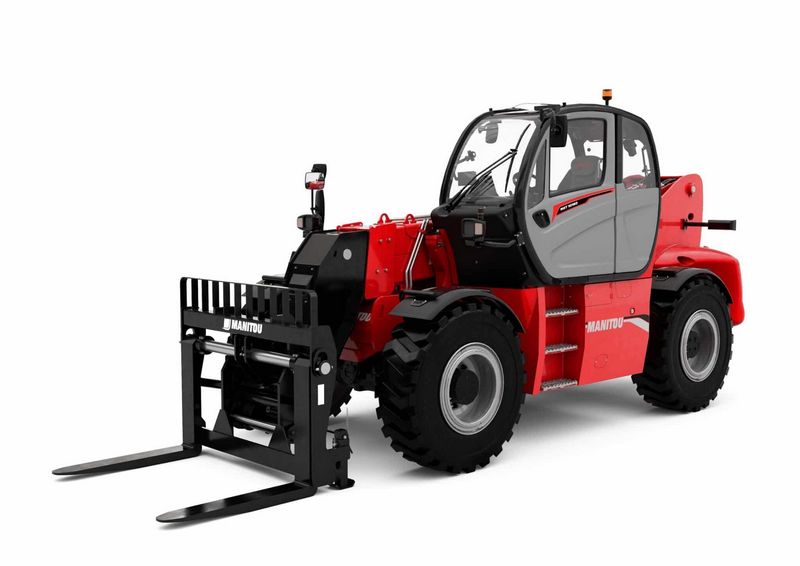

Manitou MHT 10160
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.67 ft in (6605.02 mm) |
| Ground Clearance | 17.5 ft in (444.5 mm) |
| Width Over Tires | 8.17 ft in (2490.22 mm) |
| Overall Height | 9.58 ft in (2919.99 mm) |
| Wheelbase | 14.25 ft in (4343.4 mm) |
| Turning Radius Outside Tires | 18.58 ft in (5663.19 mm) |
Lift
| Max Lift Height | 31.75 ft in (9677.4 mm) |
| Max Forward Reach | 18.18 ft in (5538.22 mm) |
| Max Load At Max Reach | 9250 lb (4195.73 kg) |
| Max Load At Max Height | 15430 lb (6998.94 kg) |
| Max Lift Capacity | 36000 lb (16329.33 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo Diesel |
| Gross Power | 175 hp (130.5 kw) |
| Max Torque | 498 lb ft (675.2 Nm) |
| Displacement | 259 cu in (4.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 49165 lb (22300.9 kg) |
| Fuel Capacity | 52 gal (196.9 L) |
| Hydraulic System Fluid Capacity | 76 gal (287.7 L) |
| Drawbar Pull | 114322 lb (51855.6 kg) |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 16 mph (25.8 km/h) |
Hydraulic
| Pump Type | two electronically regulated variable displacement pumps |
| Pump Flow Capacity | 45 gal/min (170.4 L/min) |
| Relief Valve Pressure | 5000 psi (34473.8 kPa) |
