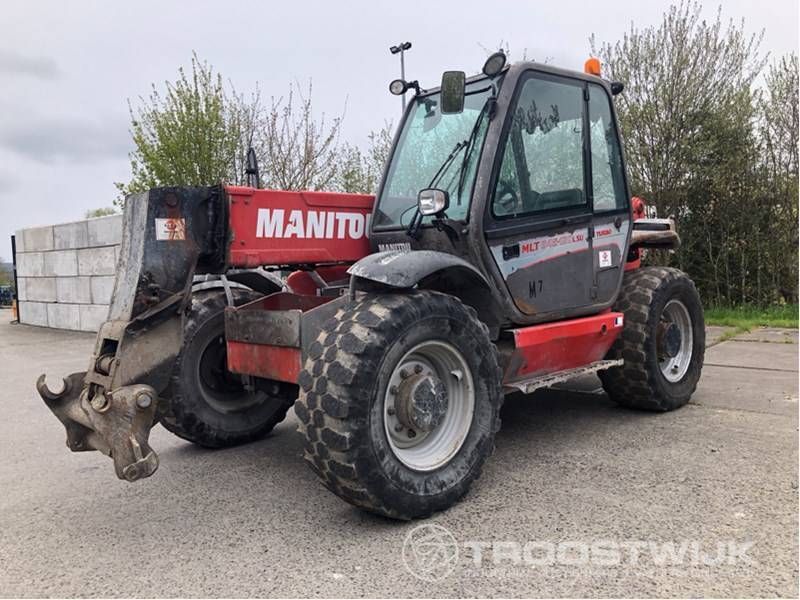

Manitou MLT 845-120 LSU
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.16 ft in (5229 mm) |
| Ground Clearance | 17.13 ft in (435 mm) |
| Width Over Tires | 7.94 ft in (2420 mm) |
| Overall Height | 9.08 ft in (2765 mm) |
| Wheelbase | 9.09 ft in (2770 mm) |
| Turning Radius Outside Tires | 13.63 ft in (4153 mm) |
Lift
| Max Lift Height | 24.78 ft in (7550 mm) |
| Max Forward Reach | 15 ft in (4570 mm) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104D-E44TA |
| Gross Power | 122.1 hp (91 kw) |
| Max Torque | 361.5 lb ft (490 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 19059 lb (8645 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 34.7 gal (131 L) |
| Drawbar Pull | 20246.6 lb (9183.7 kg) |
| Tire Size | 460/70-24 XMCL |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | load sensing pump |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
