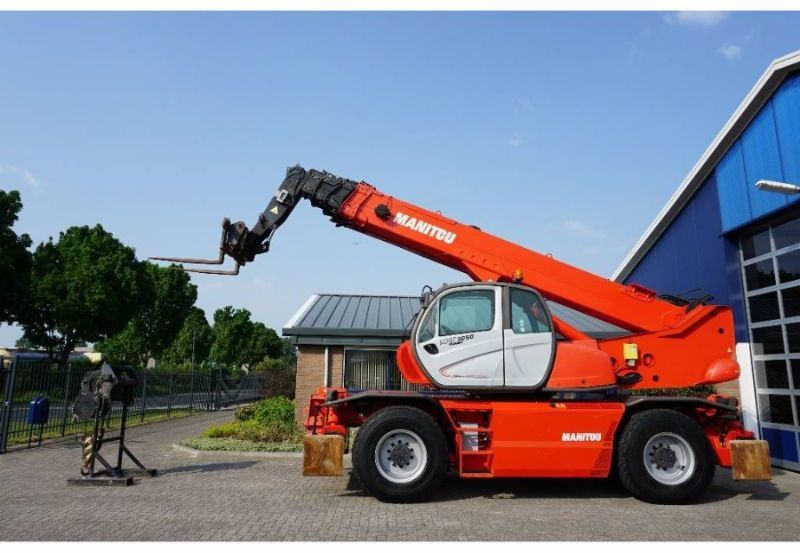

Manitou MRT 3050
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 25.54 ft in (7783 mm) |
| Ground Clearance | 16.54 ft in (420 mm) |
| Width Over Tires | 8.2 ft in (2498 mm) |
| Overall Height | 10.44 ft in (3180 mm) |
| Wheelbase | 12.31 ft in (3750 mm) |
| Turning Radius Outside Tires | 16.11 ft in (4910 mm) |
Lift
| Max Lift Height | 97.45 ft in (29700 mm) |
| Max Forward Reach | 83.67 ft in (25500 mm) |
| Max Load At Max Reach | 661.39 lb (300 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 11020.91 lb (4999 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1106DE66TA - Euro3 |
| Gross Power | 213.3 hp (159 kw) |
| Max Torque | 687.5 lb ft (932 Nm) |
| Displacement | 402.8 cu in (6.6 L) |
Operational
| Operating Weight | 50397.7 lb (22860 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Hydraulic System Fluid Capacity | 75.3 gal (285 L) |
| Drawbar Pull | 23620.4 lb (10714 kg) |
| Tire Size | 17.5R25 |
Transmission
| Transmission Type | powershift |
| Max Speed - Forward | 31.1 mph (50 km/h) |
Hydraulic
| Pump Type | variable displacement load sensing piston pump |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
