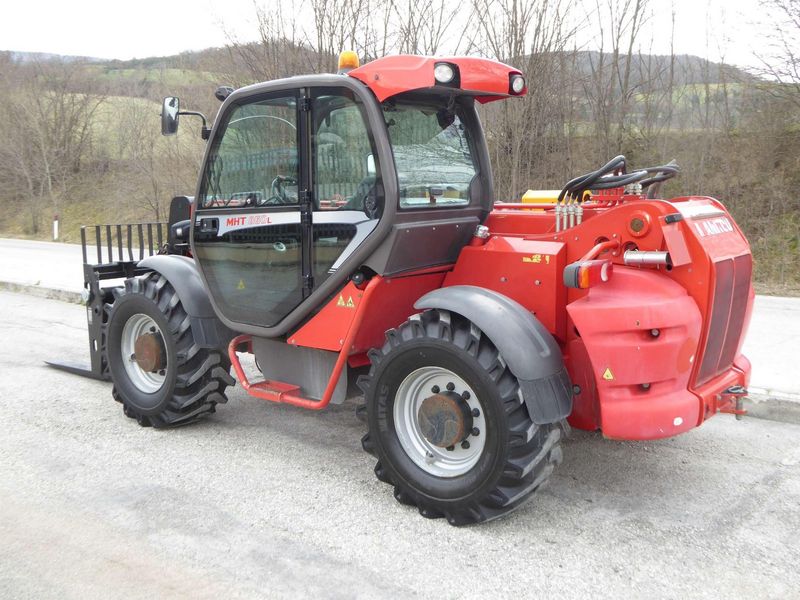

Manitou MHT 860 L Turbo
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.61 ft in (5365 mm) |
| Ground Clearance | 19.69 ft in (500 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 8.96 ft in (2730 mm) |
| Turning Radius Outside Tires | 12.31 ft in (3750 mm) |
Lift
| Max Lift Height | 26.58 ft in (8100 mm) |
| Max Forward Reach | 15.75 ft in (4800 mm) |
| Max Load At Max Reach | 3968.33 lb (1800 kg) |
| Max Load At Max Height | 7716.18 lb (3500 kg) |
| Max Lift Capacity | 13227.74 lb (6000 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44 TA |
| Gross Power | 130.1 hp (97 kw) |
| Max Torque | 368.8 lb ft (500 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 25386.3 lb (11515 kg) |
| Fuel Capacity | 31.2 gal (118 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 25195.8 lb (11428.6 kg) |
| Tire Size | 18-22.5 16PR |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
Hydraulic
| Pump Type | piston load sensing haute pression |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Relief Valve Pressure | 3988.6 psi (27500 kPa) |
