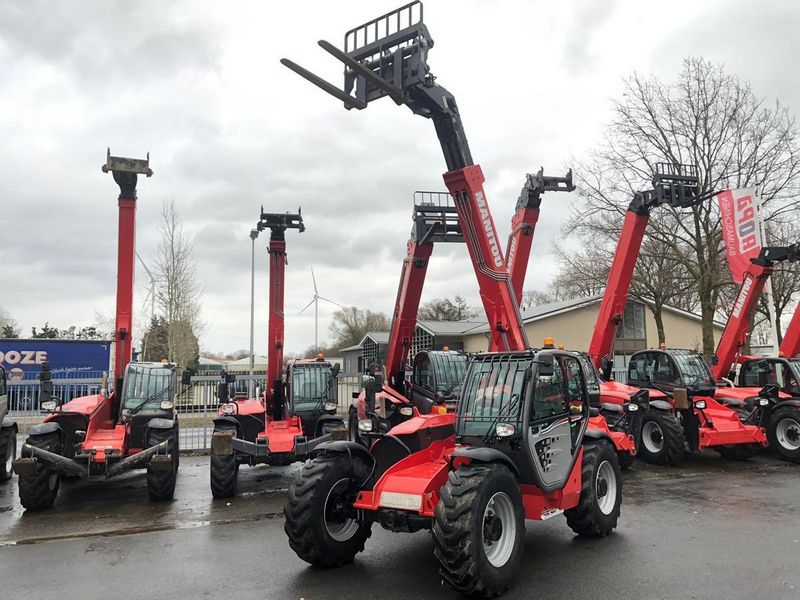

Manitou MT 732 EASY
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.62 ft in (4760 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 7.68 ft in (2340 mm) |
| Overall Height | 7.55 ft in (2300 mm) |
| Wheelbase | 9.22 ft in (2810 mm) |
| Turning Radius Outside Tires | 12.47 ft in (3800 mm) |
Lift
| Max Lift Height | 22.64 ft in (6900 mm) |
| Lowering Time - Unladen | 5.8 sec |
| Boom Retraction Time - Unladen | 4.7 sec |
| Crowd | 3 sec |
| Dump | 2.9 sec |
| Lifting Time - Unladen | 6.8 sec |
| Boom Extension Time - Unladen | 6.8 sec |
| Max Lift Capacity | 7054.8 lb (3200 kg) |
Engine
| Transmission Type | Torque converter |
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Gross Power | 75 hp (56 kw) |
| Cooling System | Water |
| Max Torque | 243.4 lb ft (330 Nm) |
| Displacement | 203.3 cu in (3.4 L) |
| Fuel Type | Diesel |
| Emission Level | Stage IV / Tier 4 Final |
| Injection | Direct |
Operational
| Operating Weight | 14947.4 lb (6780 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.9 gal (128 L) |
| Tire Size | 400/80-24 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | Gear type with priority valve |
| Pump Flow Capacity | 27.5 gal/min (104 L/min) |
| Relief Valve Pressure | 3771 psi (26000 kPa) |
