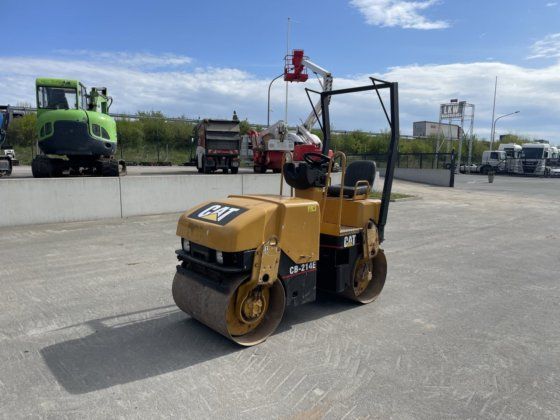

Caterpillar CB214E
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 7.98 in (2430 mm) |
| Overall Width | 3.61 ft in (1100 mm) |
| Height To Top Of Cab | 8.5 ft in (2589 mm) |
| Wheelbase | 5.68 in (1730 mm) |
| Ground Clearance | 10 in (254 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3013C |
| Gross Power | 32.8 hp (24.4 kw) |
| Net Power | 30.9 hp (23 kw) |
| Displacement | 91.3 cu in (1.5 L) |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 5401.4 lb (2450 kg) |
| Fuel Capacity | 12.3 gal (46.5 L) |
| Engine Oil Capacity | 1.6 gal (6 L) |
| Hydraulic System Fluid Capacity | 8 gal (30 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Drum
| Drum Width | 39.4 in (1000 mm) |
| Drum Diameter | 27.6 in (700 mm) |
| Static Linear Load | 175 lb/in (12.3 kg/cm) |
| Vibration Frequency 1 | 63 Hz |
| Nominal Amplitude - Med | 0.1 in (0.5 mm) |
| Centrifugal Force - Med | 6204.8 lb (27.6 kN) |
