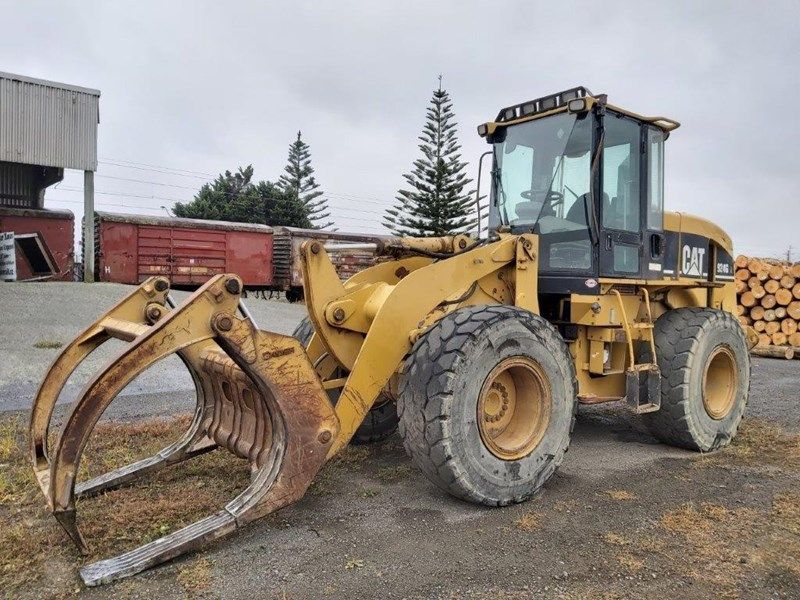

Caterpillar 924G Pin On
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.36 ft in (2850 mm) |
| Breakout Force | 25195 lb (25195 -) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
Dimensions
| Ground Clearance | 1.21 ft in (368 mm) |
| Length With Bucket On Ground | 23.1 ft in (7039 mm) |
| Width Over Tires | 7.73 ft in (2356 mm) |
| Reach At Max Lift And Dump | 3.15 ft in (960 mm) |
Engine
| Engine Model | 3056T |
| Net Power | 110 hp (82.1 kw) |
| Displacement | 366.2 cu in (6 L) |
Operational
| Operating Weight | 22571 lb (10238 kg) |
| Fuel Capacity | 52.4 gal (198 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Static Tipping Weight | 17359.2 lb (7874 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24 mph (38.5 km/h) |
| Max Speed - Reverse | 13.5 mph (21.6 km/h) |
Hydraulic System
| Raise Time | 5.1 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.4 sec |
