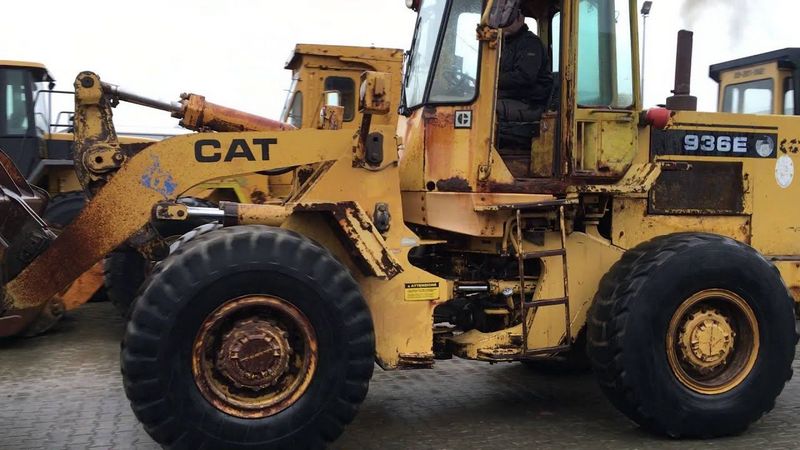

Caterpillar 936E
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.45 ft in (2879 mm) |
| Bucket Capacity - Heaped | 2.75 yd3 (2.1 m3) |
| Bucket Capacity - Struck | 2.32 yd3 (1.77 m3) |
| Bucket Width | 8.75 ft in (2664 mm) |
| Breakout Force | 28032 lb (28032 -) |
Dimensions
| Ground Clearance | 1.29 ft in (392 mm) |
| Length With Bucket On Ground | 23.17 ft in (7060 mm) |
| Width Over Tires | 8.44 ft in (2570 mm) |
| Height To Top Of Cab | 11.06 ft in (3370 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Hinge Pin - Max Height | 12.6 ft in (3840 mm) |
| Reach At Max Lift And Dump | 3.19 ft in (970 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3304 |
| Gross Power | 135.5 hp (101 kw) |
| Displacement | 427.2 cu in (7 L) |
Operational
| Operating Weight | 27105.9 lb (12295 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 38.6 gal (146 L) |
| Static Tipping Weight | 19846.1 lb (9002 kg) |
| Turning Radius | 19.6 ft in (5950 mm) |
| Tire Size | 20.5-25 12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26 mph (41.8 km/h) |
| Max Speed - Reverse | 28.6 mph (46 km/h) |
Hydraulic System
| Raise Time | 6.5 sec |
| Dump Time | 1.8 sec |
| Lower Time | 3.2 sec |
