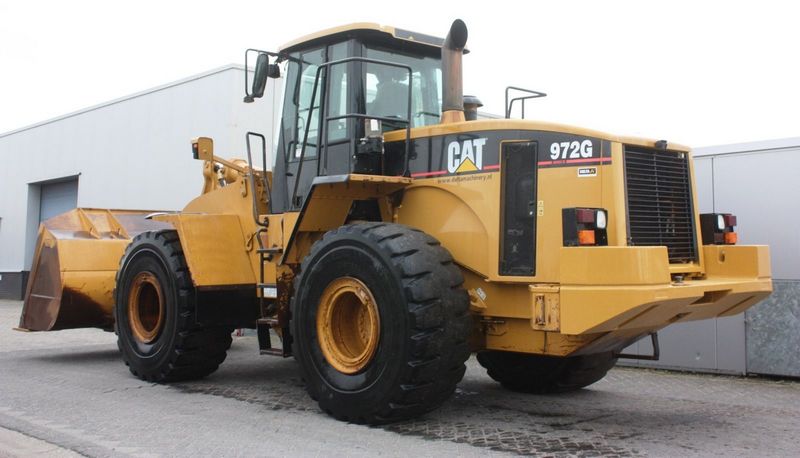

Caterpillar 972G
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.8 ft in (3290 mm) |
| Breakout Force | 51210 lb (51210 -) |
| Bucket Capacity - Heaped | 4.74 yd3 (3.62 m3) |
| Bucket Width | 10.57 ft in (3220 mm) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 29.65 ft in (9035 mm) |
| Width Over Tires | 9.72 ft in (2960 mm) |
| Reach At Max Lift And Dump | 4.2 ft in (1280 mm) |
Engine
| Engine Model | 3306DITA |
| Net Power | 275 hp (205.1 kw) |
| Gross Power | 265 hp (197.7 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 54963.5 lb (24931 kg) |
| Fuel Capacity | 108.4 gal (410 L) |
| Hydraulic System Fluid Capacity | 54.7 gal (207 L) |
| Static Tipping Weight | 40397.6 lb (18324 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 26.1 mph (41.9 km/h) |
Hydraulic System
| Raise Time | 6.6 sec |
| Dump Time | 1.6 sec |
| Lower Time | 1.8 sec |
