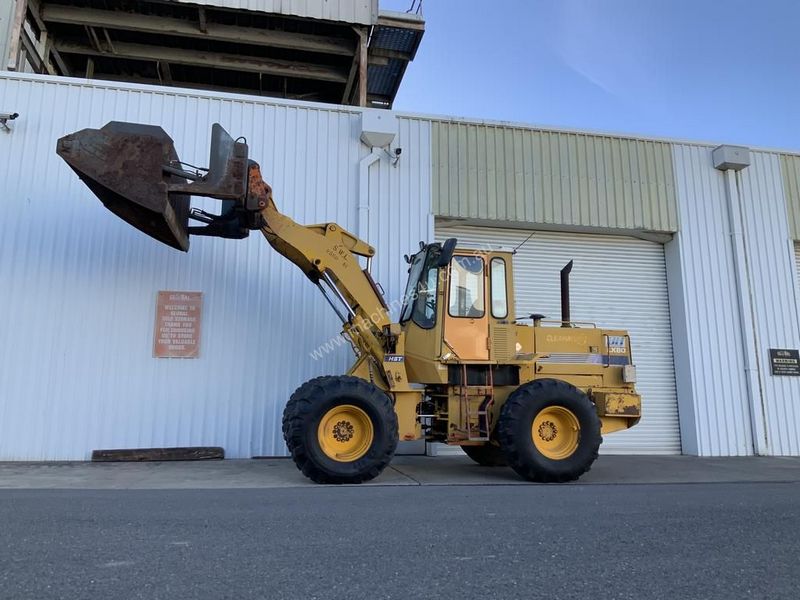

Hitachi LX80 Super
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.73 ft in (2660 mm) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.57 yd3 (1.2 m3) |
| Breakout Force | 19131.24 lb (85.1 kN) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 20.81 ft in (6340 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Hinge Pin - Max Height | 11.57 ft in (3525 mm) |
| Reach At Max Lift And Dump | 3.43 ft in (1045 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2511 |
| Engine Model | W04DT |
| Net Power | 108 hp (80.6 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Displacement | 245 cu in (4.1 L) |
| Torque Measured @ | 1700 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 17251.2 lb (7825 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Engine Oil Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Front Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 12963.2 lb (5880 kg) |
| Turning Radius | 17.6 ft in (5360 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 15.5x25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 21.4 mph (34.5 km/h) |
| Max Speed - Reverse | 21.4 mph (34.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3130 psi (21580.6 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.1 sec |
| Pump Type | Gear |
