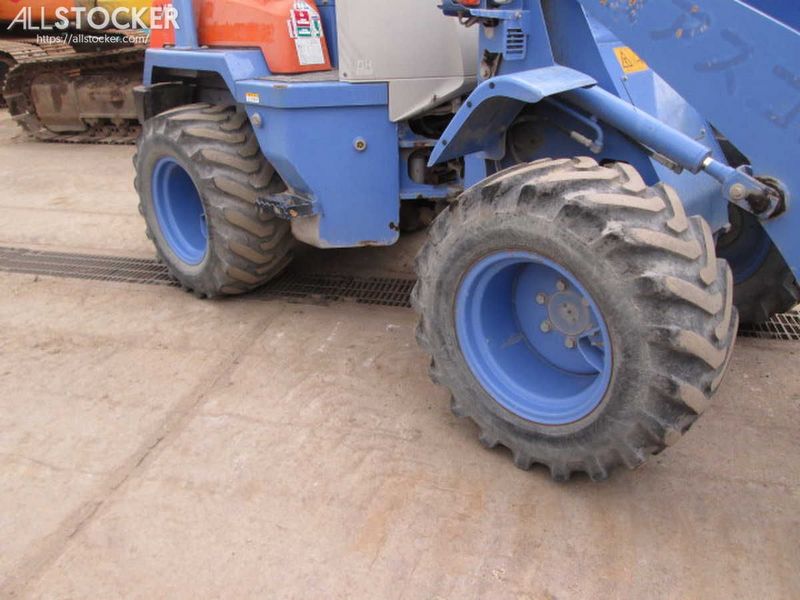

Hitachi LX30-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.03 ft in (2445 mm) |
| Bucket Capacity - Heaped | 0.66 yd3 (0.5 m3) |
| Bucket Capacity - Struck | 0.55 yd3 (0.42 m3) |
| Bucket Width | 5.55 ft in (1690 mm) |
| Breakout Force | 8050 lb (36 kN) |
Dimensions
| Ground Clearance | 0.97 ft in (295 mm) |
| Length With Bucket On Ground | 14.52 ft in (4425 mm) |
| Width Over Tires | 5.43 ft in (1655 mm) |
| Height To Top Of Cab | 8.34 ft in (2540 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Hinge Pin - Max Height | 9.95 ft in (3030 mm) |
| Reach At Max Lift And Dump | 2.78 ft in (845 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1503-DI-T-K2A |
| Net Power | 36 hp (27.2 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 91.5 cu in (1.5 L) |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 7198.1 lb (3265 kg) |
| Fuel Capacity | 13.2 gal (50 L) |
| Hydraulic System Fluid Capacity | 11.1 gal (42 L) |
| Engine Oil Fluid Capacity | 1.5 gal (5.6 L) |
| Cooling System Fluid Capacity | 1.6 gal (6.1 L) |
| Front Axle/Diff Fluid Capacity | 1.2 gal (4.5 L) |
| Rear Axle/Diff Fluid Capacity | 1.2 gal (4.5 L) |
| Static Tipping Weight | 4541.6 lb (2060 kg) |
| Turning Radius | 10.6 ft in (3220 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 15.5/60-18-8PR (L2) Tubeless, nylon body |
Transmission
| Transmission Type | Hydrostatic transmission automatically controls power and speed with electrically controlled |
| Max Speed - Forward | 9.3 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 10.9 gal/min (41.2 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.2 sec |
| Pump Type | gear type |
