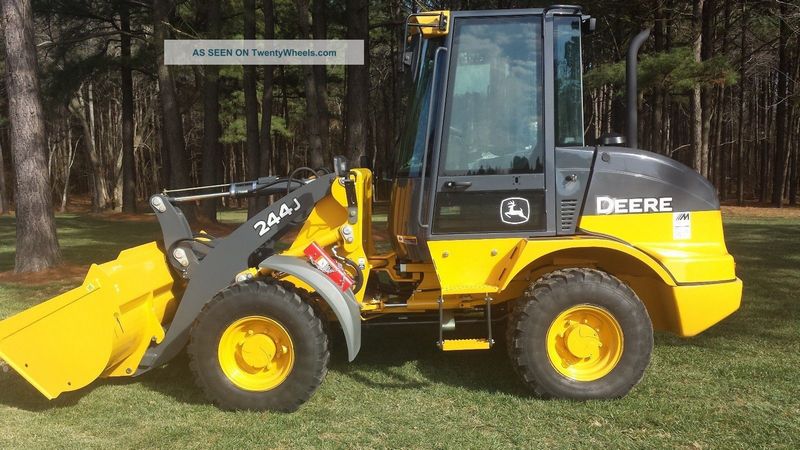

John Deere 244J
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.33 ft in (2550 mm) |
| Bucket Capacity - Heaped | 1 yd3 (0.8 m3) |
| Bucket Capacity - Struck | 0.86 yd3 (0.66 m3) |
| Bucket Width | 74.8 ft in (1900 mm) |
| Breakout Force | 10792 lb (48 kN) |
Dimensions
| Ground Clearance | 1 ft in (295 mm) |
| Length With Bucket On Ground | 17.33 ft in (5280 mm) |
| Width Over Tires | 7 ft in (2150 mm) |
| Height To Top Of Cab | 8.92 ft in (2725 mm) |
| Wheelbase | 7 ft in (2150 mm) |
| Hinge Pin - Max Height | 10.5 ft in (3210 mm) |
| Reach At Max Lift And Dump | 2.68 ft in (818 mm) |
Engine
| Engine Make | 2240 |
| Engine Model | e 4024T |
| Net Power | 59 hp (44 kw) |
| Gross Power | 64 hp (48 kw) |
| Max Torque | 163 lb ft (221 Nm) |
| Displacement | 149 cu in (2.4 L) |
| Aspiration | Turbocharged |
| Torque Rise | 47.3 % |
Operational
| Operating Weight | 11552 lb (5240 kg) |
| Fuel Capacity | 22 gal (81 L) |
| Hydraulic System Fluid Capacity | 16 gal (60 L) |
| Engine Oil Fluid Capacity | 9 gal (8.5 L) |
| Cooling System Fluid Capacity | 10.6 gal (10 L) |
| Front Axle/Diff Fluid Capacity | 4.2 gal (4 L) |
| Rear Axle/Diff Fluid Capacity | 4.3 gal (4.1 L) |
| Static Tipping Weight | 8457 lb (3836 kg) |
| Turning Radius | 11.5 ft in (3505 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 365/70R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.6 mph (30 km/h) |
| Max Speed - Reverse | 18.6 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 3190 psi (21980 kPa) |
| Pump Flow Capacity | 17 gal/min (64 L/min) |
| Raise Time | 4.9 sec |
| Dump Time | 1.4 sec |
| Lower Time | 4 sec |
| Pump Type | Gear |
