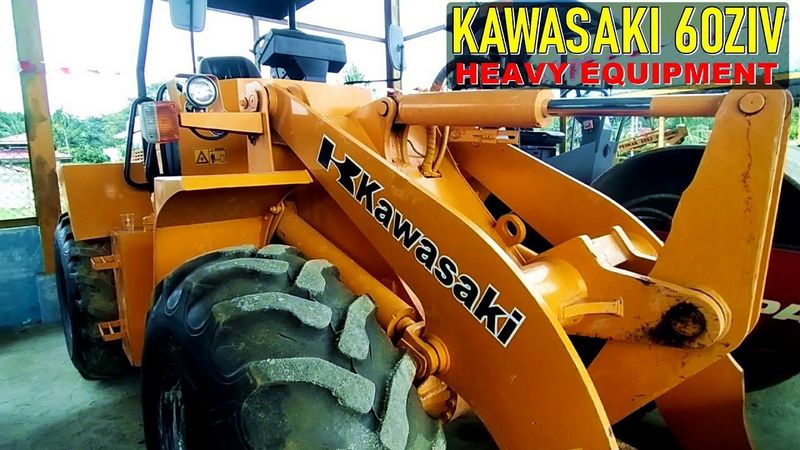

Kawasaki 60ZIV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.67 ft in (2640 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.6 m3) |
| Bucket Capacity - Struck | 1.84 yd3 (1.4 m3) |
| Bucket Width | 8.04 ft in (2450 mm) |
| Breakout Force | 17600 lb (78.29 kN) |
Dimensions
| Ground Clearance | 1.24 ft in (375 mm) |
| Length With Bucket On Ground | 20.99 ft in (6395 mm) |
| Width Over Tires | 7.42 ft in (2260 mm) |
| Height To Top Of Cab | 10.13 ft in (3085 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Hinge Pin - Max Height | 11.36 ft in (3460 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Net Power | 109 hp (81.3 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 325 lb ft (440.7 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 18166.1 lb (8240 kg) |
| Fuel Capacity | 46.3 gal (175 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Fluid Capacity | 3.8 gal (14.2 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 5.3 gal (20 L) |
| Rear Axle/Diff Fluid Capacity | 5.3 gal (20 L) |
| Static Tipping Weight | 15079.7 lb (6840 kg) |
| Turning Radius | 17.6 ft in (5335 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 15.5x25-12PR (L-2) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 20.1 mph (32.4 km/h) |
| Max Speed - Reverse | 20.1 mph (32.4 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 31 gal/min (117.4 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3 sec |
| Pump Type | gear type |
