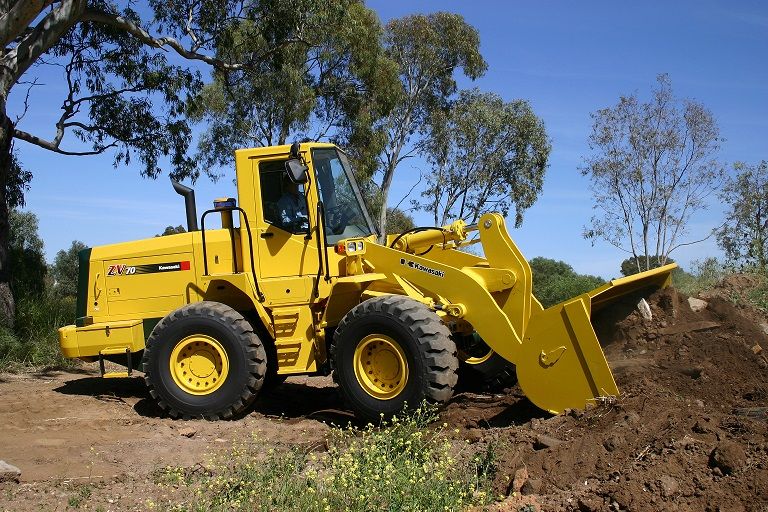

Kawasaki 70ZIV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.88 ft in (2705 mm) |
| Bucket Capacity - Heaped | 3.27 yd3 (2.5 m3) |
| Bucket Capacity - Struck | 2.75 yd3 (2.1 m3) |
| Bucket Width | 8.76 ft in (2670 mm) |
| Breakout Force | 27560 lb (122.6 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (405 mm) |
| Length With Bucket On Ground | 24.41 ft in (7440 mm) |
| Width Over Tires | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.41 ft in (3780 mm) |
| Reach At Max Lift And Dump | 3.66 ft in (1115 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 490 lb ft (664.4 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged & after cooled |
Operational
| Operating Weight | 28748.3 lb (13040 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Engine Oil Fluid Capacity | 5.9 gal (22 L) |
| Cooling System Fluid Capacity | 14.3 gal (54 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 12.7 gal (48 L) |
| Rear Axle/Diff Fluid Capacity | 13.5 gal (51 L) |
| Static Tipping Weight | 22024.2 lb (9990 kg) |
| Turning Radius | 19.9 ft in (6040 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5x25-12PR (L-2) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37.1 km/h) |
| Max Speed - Reverse | 23 mph (37.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 15.9 gal/min (60.2 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.1 sec |
| Pump Type | gear type |
