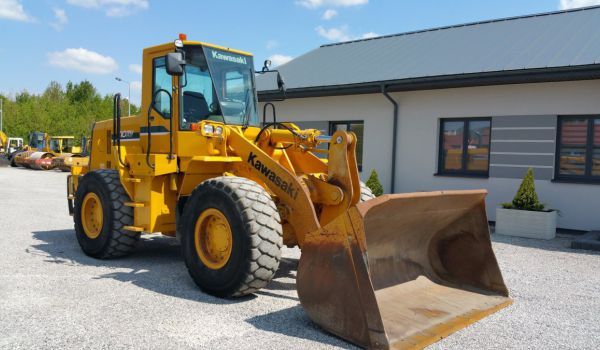

Kawasaki 70ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.24 ft in (2815 mm) |
| Bucket Capacity - Heaped | 3.5 yd3 (2.68 m3) |
| Bucket Capacity - Struck | 3 yd3 (2.3 m3) |
| Bucket Width | 8.76 ft in (2670 mm) |
| Breakout Force | 27875 lb (124 kN) |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Length With Bucket On Ground | 24.94 ft in (7600 mm) |
| Width Over Tires | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 3.58 ft in (1090 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Net Power | 174 hp (129.8 kw) |
| Gross Power | 193 hp (144 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 657 lb ft (890.8 Nm) |
| Displacement | 409 cu in (6.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 31437 lb (14259.6 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Engine Oil Fluid Capacity | 6.4 gal (24 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 13.3 gal (50 L) |
| Rear Axle/Diff Fluid Capacity | 13.8 gal (52 L) |
| Static Tipping Weight | 25022 lb (11349.8 kg) |
| Turning Radius | 19.9 ft in (6055 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5x25-12PR (L-2) |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37.1 km/h) |
| Max Speed - Reverse | 23.3 mph (37.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 18.2 gal/min (68.9 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.1 sec |
| Pump Type | gear type |
