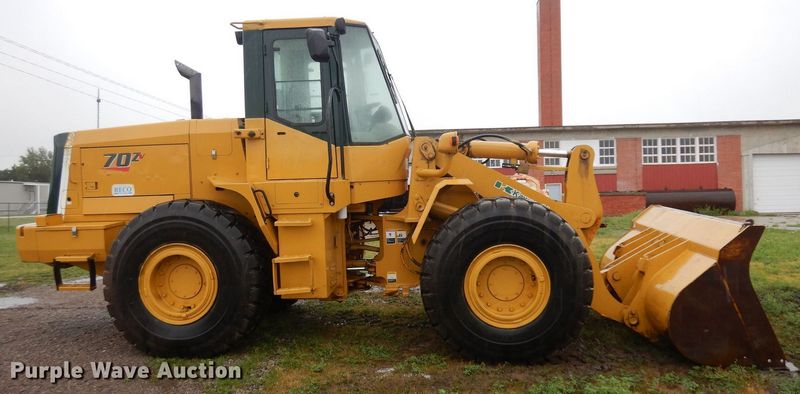

Kawasaki 70ZV
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.24 ft in (2815 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.76 ft in (2670 mm) |
| Breakout Force | 27780 lb (123.58 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (405 mm) |
| Length With Bucket On Ground | 24.94 ft in (7600 mm) |
| Width Over Tires | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 10.95 ft in (3335 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 3.58 ft in (1090 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB5.9 |
| Net Power | 168 hp (125.3 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 525 lb ft (711.9 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged & intercooler |
Operational
| Operating Weight | 31592.3 lb (14330 kg) |
| Fuel Capacity | 75.3 gal (285 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 13.3 gal (50 L) |
| Rear Axle/Diff Fluid Capacity | 13.8 gal (52 L) |
| Static Tipping Weight | 26631.9 lb (12080 kg) |
| Turning Radius | 19.9 ft in (6055 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5x25-12PR (L-2) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.6 mph (38 km/h) |
| Max Speed - Reverse | 23.5 mph (37.9 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 17.7 gal/min (67.1 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.1 sec |
| Pump Type | gear type |
