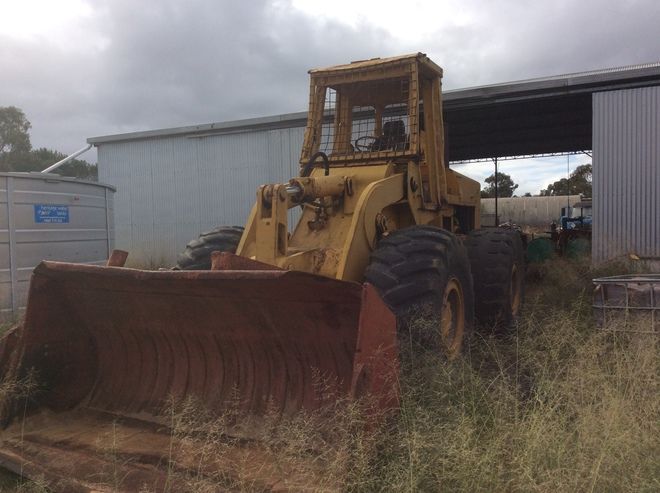

Komatsu W120-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.83 ft in (2995 mm) |
| Bucket Capacity - Heaped | 4.32 yd3 (3.3 m3) |
| Bucket Width | 9.6 ft in (2925 mm) |
| Breakout Force | 31530 lb (140.1 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 25.07 ft in (7640 mm) |
| Width Over Tires | 9.13 ft in (2780 mm) |
| Height To Top Of Cab | 11.08 ft in (3375 mm) |
| Wheelbase | 10.26 ft in (3125 mm) |
| Hinge Pin - Max Height | 13.23 ft in (4030 mm) |
| Reach At Max Lift And Dump | 4.04 ft in (1230 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | SA6D110 |
| Gross Power | 200 hp (149.2 kw) |
| Displacement | 435 cu in (7.2 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 37787.3 lb (17140 kg) |
| Fuel Capacity | 80.1 gal (303 L) |
| Cooling System Fluid Capacity | 13 gal (49 L) |
| Static Tipping Weight | 28990.8 lb (13150 kg) |
| Turning Radius | 22.8 ft in (6920 mm) |
| Tire Size | 23.5-25-12PR (L-2) |
Transmission
| Transmission Type | TORQFLOW full power shift countershaft full soft-shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 20.1 mph (32.2 km/h) |
Hydraulic System
| Raise Time | 6.3 sec |
| Dump Time | 2.3 sec |
| Lower Time | 3.2 sec |
