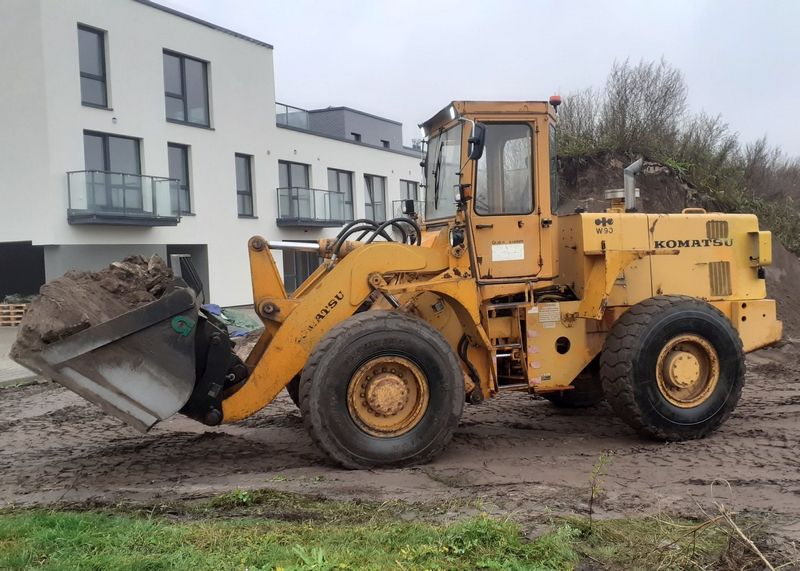

Komatsu W90-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.19 ft in (2800 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.58 ft in (2615 mm) |
| Breakout Force | 26230 lb (116.6 kN) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Length With Bucket On Ground | 22.54 ft in (6870 mm) |
| Width Over Tires | 8.26 ft in (2515 mm) |
| Height To Top Of Cab | 10.63 ft in (3240 mm) |
| Wheelbase | 9.42 ft in (2870 mm) |
| Hinge Pin - Max Height | 12.24 ft in (3730 mm) |
| Reach At Max Lift And Dump | 3.24 ft in (985 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D105 |
| Gross Power | 157 hp (117.1 kw) |
| Displacement | 396 cu in (6.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 27116.9 lb (12300 kg) |
| Fuel Capacity | 59.8 gal (226 L) |
| Cooling System Fluid Capacity | 10.1 gal (38 L) |
| Static Tipping Weight | 21384.9 lb (9700 kg) |
| Turning Radius | 20.8 ft in (6320 mm) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5-25-12PR (L-3) |
Transmission
| Transmission Type | TORQFLOW full power shift coutnershaft type full soft shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 18.9 mph (30.4 km/h) |
| Max Speed - Reverse | 20.1 mph (32.3 km/h) |
Hydraulic System
| Raise Time | 5.3 sec |
| Dump Time | 2.5 sec |
| Lower Time | 2.5 sec |
