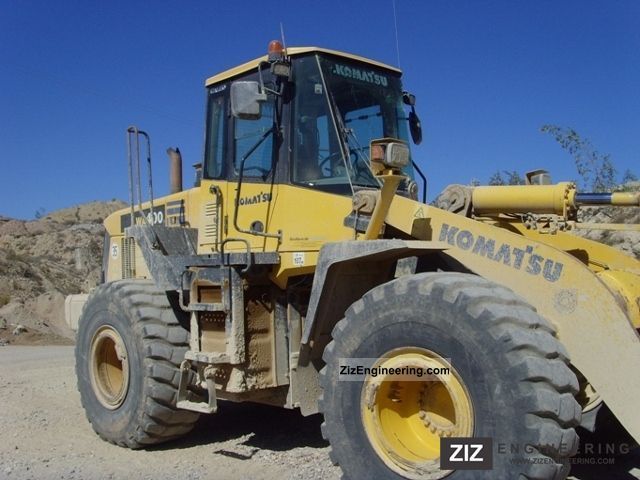

Komatsu WA 400-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.8 ft in (2985 mm) |
| Bucket Capacity - Heaped | 4.32 yd3 (3.3 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
| Breakout Force | 36508.97 lb (162.4 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (459 mm) |
| Length With Bucket On Ground | 27.1 ft in (8259 mm) |
| Width Over Tires | 9.63 ft in (2935 mm) |
| Height To Top Of Cab | 11.11 ft in (3384 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 13.63 ft in (4154 mm) |
| Reach At Max Lift And Dump | 3.66 ft in (1115 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D114 E-2 |
| Gross Power | 208 hp (155.2 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 687.5 lb ft (932 Nm) |
| Displacement | 504.7 cu in (8.3 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 42031.2 lb (19065 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 34.1 gal (129 L) |
| Engine Oil Fluid Capacity | 8.5 gal (32 L) |
| Cooling System Fluid Capacity | 9.6 gal (36 L) |
| Transmission Fluid Capacity | 10.1 gal (38 L) |
| Front Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Rear Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Static Tipping Weight | 34226.8 lb (15525 kg) |
| Turning Radius | 19.8 ft in (6035 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Tire Size | 23.5 R25 - 750/65 R25 |
Transmission
| Transmission Type | Automatic powershift transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24 mph (38.5 km/h) |
| Max Speed - Reverse | 24.7 mph (39.6 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 79.8 gal/min (302 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.7 sec |
| Pump Type | gear pump |
