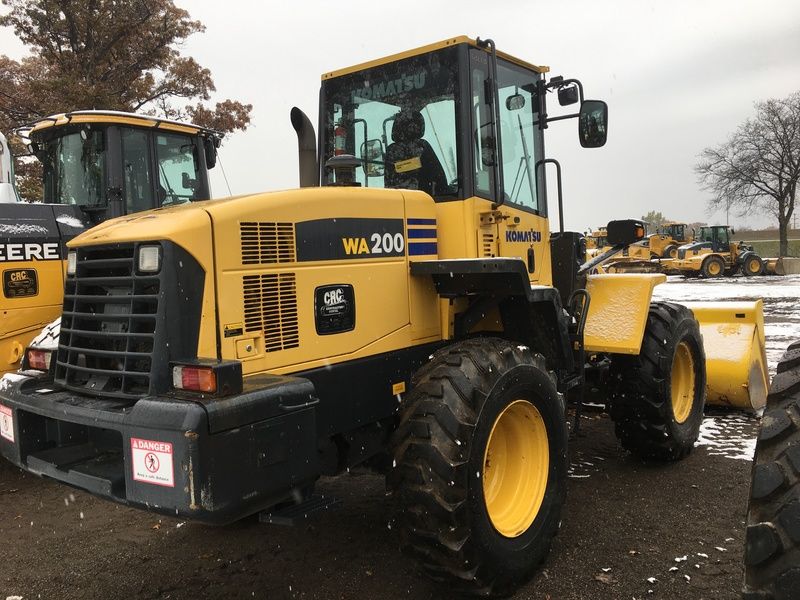

Komatsu WA200-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.06 ft in (2760 mm) |
| Bucket Capacity - Heaped | 2.6 yd3 (1.99 m3) |
| Bucket Capacity - Struck | 2.21 yd3 (1.69 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 20943.92 lb (93.17 kN) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 22.63 ft in (6895 mm) |
| Width Over Tires | 7.8 ft in (2375 mm) |
| Height To Top Of Cab | 10.21 ft in (3110 mm) |
| Wheelbase | 9.32 ft in (2840 mm) |
| Hinge Pin - Max Height | 11.93 ft in (3635 mm) |
| Reach At Max Lift And Dump | 3.29 ft in (1000 mm) |
Engine
| Emissions Certification | EPA Tier 2 |
| Number Of Cylinders | 6 |
| Engine Model | SAA6D102E-2 |
| Net Power | 123 hp (91.8 kw) |
| Gross Power | 127 hp (94.8 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | Turbocharge |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.8 in (120 mm) |
Operational
| Operating Weight | 20877.8 lb (9470 kg) |
| Fuel Capacity | 46.3 gal (175 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (58 L) |
| Engine Oil Fluid Capacity | 5.2 gal (19.5 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Transmission Fluid Capacity | 1.5 gal (5.5 L) |
| Front Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5-25-12PR (L2) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
Hydraulic System
| Raise Time | 5.9 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.6 sec |
