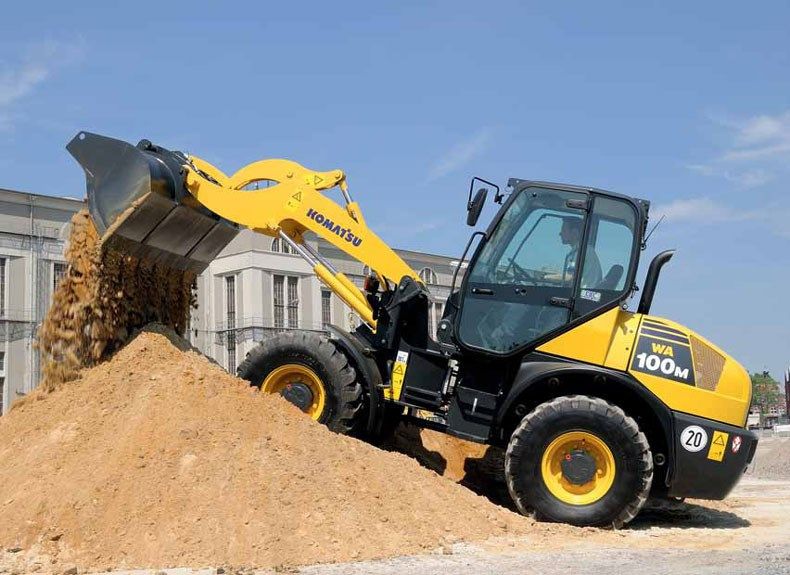

Komatsu WA100M-6
Browse All Komatsu or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 9.32 ft in (2840 mm) |
| Wheelbase | 7.88 ft in (2400 mm) |
| Length | 230.91 in (5865 mm) |
| Turning Circle | 15.59 ft in (4750 mm) |
| Width Over Tyres | 81.89 in (2080 mm) |
Tyres
| Standard | 12.0-18 |
| Standard Fitment Size | 455/70 R20 |
Steering System
| System | Articulated frame steering |
| Steering Angle To Either Side | 42 degrees |
| Steering Pump | Gear pump |
| Working Pressure | 175Bar |
| Steering System Type | Hydrostatic( Double-action) |
| No. Of Steering Cylinders | 2 |
| Bore Diameter | 60 |
| Smallest Turn (Outer Edge Of The Tyre 12.0-18) | 13.9 ft in (4230 mm) |
| Stroke | 1.3 ft in (369 mm) |
Engine
| Horsepower, Gross-Sae J1995 | 88.6 hp (66 kw) |
| Horsepower, Net-Iso 9249 | 88.6 hp (66 kw) |
| Horsepower, Net-Sae J1349 | 88.6 hp (66 kw) |
| Engine Power@Iso 14396 | 885 hp (660 kw) |
| Air Filter Type | Dry air filter with per-filter and safety cartridge |
| Engine Power@Engine Speedsae J134 | 536 hp (399.7 kw) |
| Injection System | Direct injection |
| Electrical System | 12V |
| Number Of Cylinders | 4 |
| Rated Engine Speed | 2350 |
| Engine Make | 2238 |
| Engine Model | Komatsu SAA4D95LE-5 |
| Max Torque | 140.2 lb ft (190 Nm) |
| Battery | 92AH |
| Displacement | 201.4 cu in (3.3 L) |
| Bore | 3.8 in (95 mm) |
| Stroke | 4.6 in (115 mm) |
| Alternator | 90A amps |
| Injection | common rail direct injection |
| Fan Drive Type | Hydraulic |
Driveline
| Brake | Hydraulic |
| Ride Control System | Standard |
| Maximum Speeds Fwd | 18.7 mph (30 km/h) |
| Maximum Speeds Rev | 18.7 mph (30 km/h) |
| Transmission | Hydrostatic |
| Number Of Speeds - Forward | 2 |
| Number Of Speeds - Reverse | 2 |
Capacities
| Front Axle | 646.9 cu in (10.6 L) |
| Transfer Box | 79.4 cu in (1.3 L) |
| Fuel Tank | 37 gal (140 L) |
| Cooling System | 3.1 gal (11.5 L) |
| Rear Axle | 2.9 gal (10.6 L) |
| Hydraulic System | 21.2 gal (80 L) |
| Engine Oil | 3.1 gal (11.5 L) |
Operational
| Bucket Capacity Range – Sae | 1.05-1.8 m3 |
| Standard Bucket Capacity – Sae | 1.6 yd3 (1.2 m3) |
| Bucket Description | GP Bucket |
| Static Tipping Load,Full Turn | 11331.8 lb (5140 kg) |
| Breakout Force | 7576 kgf |
| Dump Clearance, @45 Degrees Dump Angle | 9 ft in (2730 mm) |
| Dump Reach, @45 Degrees Dump Angle | 2.8 ft in (845 mm) |
| Bucket Width | 7.3 ft in (2200 mm) |
| Bucket Link Type | Z-Bar |
Transmission
| Drive System | Hydrostatic transmissionswitchable in all directions under full power |
| Hydrostatic Pump | 1variable piston pump |
| Speed Ranges (Forwards/Backward) | 2/2 |
| Travelspeeds(Frwd)Speed Range | 0-5 KM/h |
| Travelspeeds(Backwrd)Speed Range | 0-20 KM/h |
| Hydrostaticmotors | 1variable motor pump |
Weights
| Operating Weight | 6875 |
Hydraulic System
| Steering Pump Type | Gear Pump |
| Loader Control Type | Gear Pump |
| Working Pressure | 270Bar |
| Circulating Capacity Of The Hydraulic Pump | 19.9 gal/min (75 L/min) |
| No.Of.Bucket Cylinders | 1 |
| Boom Cylinder | 28.2 in (714 mm) |
| Bucket Cylinder | 1.6 ft in (476 mm) |
| Kinematic | Z-Kinematic with highest breakout force |
| System | Open hydraulic system |
| No.Of.Boom Cylinders | 2 |
| Lower Time | 3.5 sec |
| Hydraulic System Type | Double-action |
Brakes
| Operating | Combined inch/brake pedal actuatesbrakes on all four wheels via hydrostaticdrive and dry disc at front axle |
| Park Brake | Dry Disc |
Chassis
| Sysytem | 4-wheel drive |
| Oscillation | 10 degrees |
