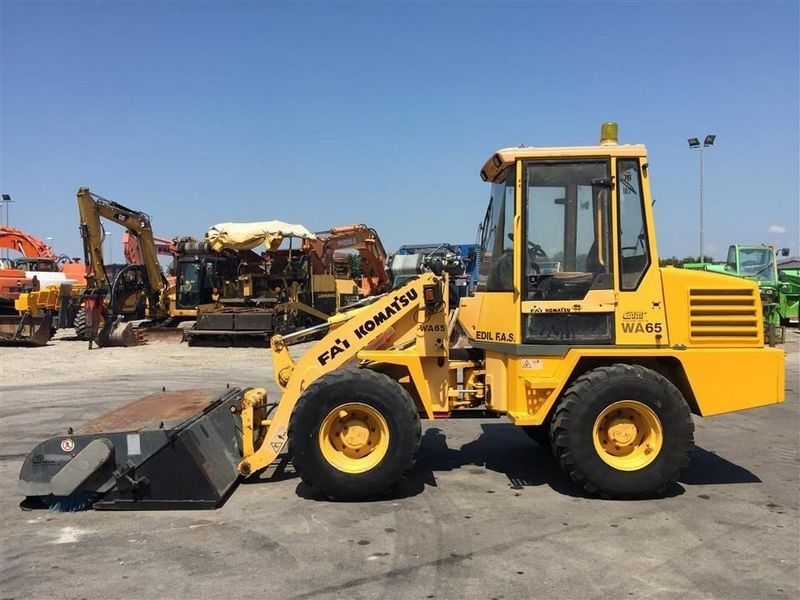

Komatsu WA65-6H
Browse All Komatsu or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 0.92 ft in (280 mm) |
| Height To Top Of Cab | 8.04 ft in (2450 mm) |
| Wheelbase | 6.73 ft in (2050 mm) |
| Length | 211.82 in (5380 mm) |
| Turning Circle | 13.95 ft in (4250 mm) |
| Width Over Tyres | 63.98 in (1625 mm) |
Tyres
| Standard | 12.0-18 |
| Standard Fitment Size | 335/80 R18 |
Steering System
| System | Articulated frame steering |
| Steering Angle To Either Side | 40 degrees |
| Steering Pump | Gear pump |
| Working Pressure | 175Bar |
| Steering System Type | Hydrostatic( Double-action) |
| No. Of Steering Cylinders | 1 |
| Bore Diameter | 70 |
| Smallest Turn (Outer Edge Of The Tyre 12.0-18) | 12.1 ft in (3680 mm) |
| Stroke | 1.2 ft in (363 mm) |
Engine
| Horsepower, Gross-Sae J1995 | 55 hp (41 kw) |
| Horsepower, Net-Iso 9249 | 53.7 hp (40 kw) |
| Horsepower, Net-Sae J1349 | 53.7 hp (40 kw) |
| Engine Power@Iso 14396 | 550 hp (410.2 kw) |
| Air Filter Type | Dry air filter with per-filter and safety cartridge |
| Engine Power@Engine Speedsae J134 | 536 hp (399.7 kw) |
| Max Engine Speed | 1600RPM |
| Injection System | Direct injection |
| Electrical System | 12V |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | Komatsu 4D95LWE-5 |
| Power Measured @ | 2350 rpm |
| Max Torque | 140.2 lb ft (190 Nm) |
| Battery | 92AH |
| Displacement | 201.4 cu in (3.3 L) |
| Bore | 3.8 in (95 mm) |
| Stroke | 4.6 in (115 mm) |
| Alternator | 90A amps |
| Fan Drive Type | Hydraulic |
Driveline
| Brake | Hydraulic |
| Ride Control System | Standard |
| Maximum Speeds Fwd | 12.5 mph (20 km/h) |
| Maximum Speeds Rev | 12.5 mph (20 km/h) |
| Transmission | Hydrostatic |
| Number Of Speeds - Forward | 2 |
Capacities
| Front Axle | 512.6 cu in (8.4 L) |
| Transfer Box | 79.4 cu in (1.3 L) |
| Fuel Tank | 34.9 gal (132 L) |
| Hydraulic Tank | 13.3 gal (50 L) |
| Cooling System | 2.5 gal (9.1 L) |
| Rear Axle | 2.3 gal (8.4 L) |
| Engine Oil | 2 gal (7.5 L) |
Operational
| Bucket Capacity Range – Sae | 0.55-1.0 |
| Standard Bucket Capacity – Sae | 1.4 yd3 (1 m3) |
| Bucket Description | GP Bucket |
| Static Tipping Load,Full Turn | 6944.6 lb (3150 kg) |
| Breakout Force | 3150 kgf |
| Dump Clearance, @45 Degrees Dump Angle | 7.6 ft in (2310 mm) |
| Dump Reach, @45 Degrees Dump Angle | 3.3 ft in (986 mm) |
| Bucket Width | 6.2 ft in (1870 mm) |
Transmission
| Drive System | Hydrostatic transmissionswitchable in all directions under full power |
| Hydrostatic Pump | 1variable piston pump |
| Speed Ranges (Forwards/Backward) | 2/2 |
| Travelspeeds(Frwd)Speed Range | 0-5 KM/h |
| Travelspeeds(Backwrd)Speed Range | 0-20 KM/h |
| Hydrostaticmotors | 1variable motor pump |
Weights
| Operating Weight | 10229.5 lb (4640 kg) |
Hydraulic System
| Steering Pump Type | Gear Pump |
| Loader Control Type | Gear Pump |
| Working Pressure | 200Bar |
| Circulating Capacity Of The Hydraulic Pump | 14.1 gal/min (53 L/min) |
| No.Of.Boom | 1 |
| No.Of.Bucket Cylinders | 1 |
| Boom Cylinder | 26.4 in (670 mm) |
| Bucket Cylinder | 1.8 ft in (522 mm) |
| Kinematic | Z-Kinematic with highest breakout force |
| System | Open hydraulic system |
| Raise Time | 5.3 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3 sec |
| Hydraulic System Type | Double-action |
Brakes
| Operating | Combined inch/brake pedal actuatesbrakes on all four wheels via hydrostaticdrive and dry disc at front axle |
| Park Brake | Dry Disc |
Chassis
| Sysytem | 4-wheel drive |
| Oscillation | 10 degrees |
