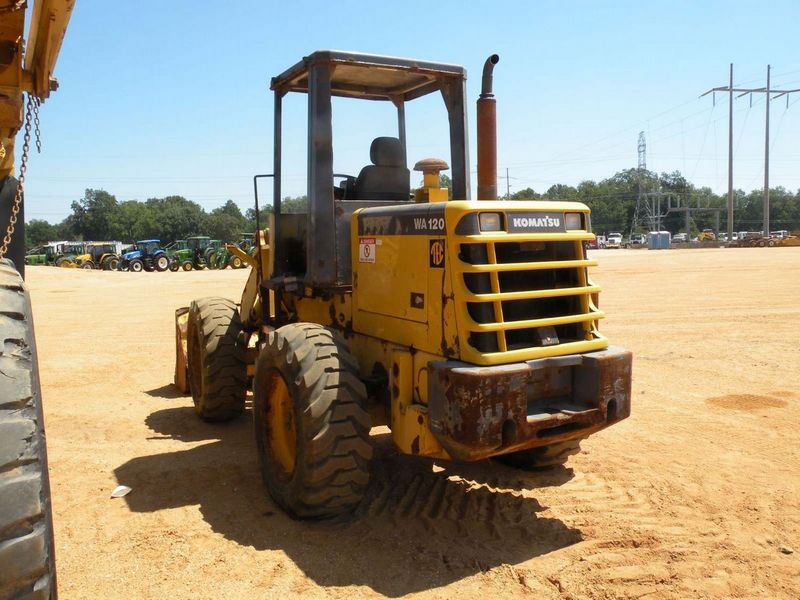

Komatsu WA120-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.83 ft in (2690 mm) |
| Bucket Capacity - Heaped | 1.84 yd3 (1.4 m3) |
| Bucket Capacity - Struck | 1.57 yd3 (1.2 m3) |
| Bucket Width | 7.85 ft in (2390 mm) |
| Breakout Force | 13490 lb (60.01 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 19.9 ft in (6065 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 10.06 ft in (3065 mm) |
| Wheelbase | 8.54 ft in (2600 mm) |
| Hinge Pin - Max Height | 11.32 ft in (3450 mm) |
| Reach At Max Lift And Dump | 3.24 ft in (985 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 6D95L |
| Gross Power | 63 hp (47 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 298.5 cu in (4.9 L) |
Operational
| Operating Weight | 16953.6 lb (7690 kg) |
| Fuel Capacity | 35.2 gal (133 L) |
| Static Tipping Weight | 13889.2 lb (6300 kg) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 16.9-24 |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
Hydraulic System
| Pump Flow Capacity | 30.4 gal/min (115 L/min) |
