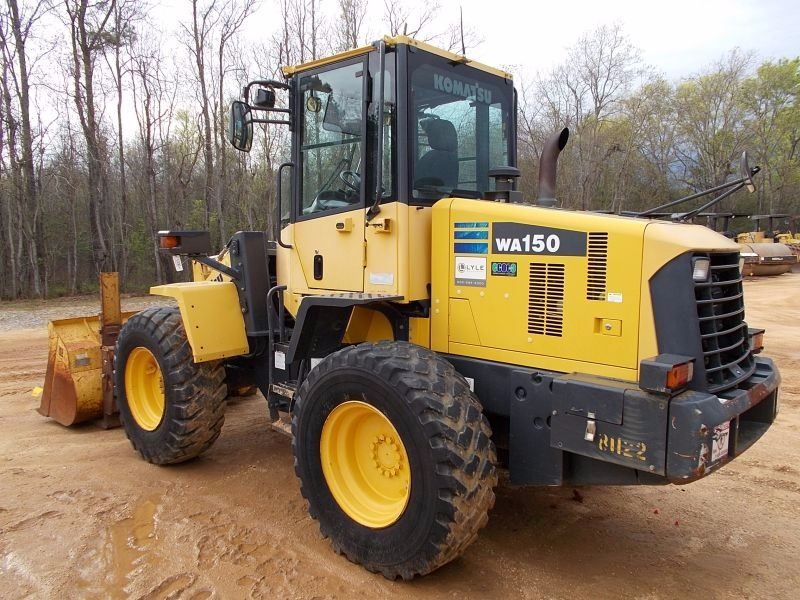

Komatsu WA150-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.96 ft in (2730 mm) |
| Bucket Capacity - Struck | 1.64 yd3 (1.25 m3) |
| Bucket Width | 7.85 ft in (2390 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 20.71 ft in (6310 mm) |
| Width Over Tires | 7.16 ft in (2180 mm) |
| Height To Top Of Cab | 9.93 ft in (3025 mm) |
| Wheelbase | 8.54 ft in (2600 mm) |
| Hinge Pin - Max Height | 11.41 ft in (3475 mm) |
| Reach At Max Lift And Dump | 3.11 ft in (945 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D95LE-5 |
| Net Power | 98 hp (73.1 kw) |
| Gross Power | 99 hp (73.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 17306.3 lb (7850 kg) |
| Fuel Capacity | 35.2 gal (133 L) |
| Hydraulic System Fluid Capacity | 12.5 gal (47 L) |
| Engine Oil Fluid Capacity | 3.1 gal (11.5 L) |
| Cooling System Fluid Capacity | 3.9 gal (14.6 L) |
| Front Axle/Diff Fluid Capacity | 3.7 gal (14 L) |
| Rear Axle/Diff Fluid Capacity | 3.9 gal (14.5 L) |
| Static Tipping Weight | 14870.2 lb (6745 kg) |
| Turning Radius | 17.7 ft in (5377 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 23.7 mph (38 km/h) |
Hydraulic System
| Relief Valve Setting | 2700 psi (18615.9 kPa) |
| Pump Flow Capacity | 28.6 gal/min (108 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.6 sec |
