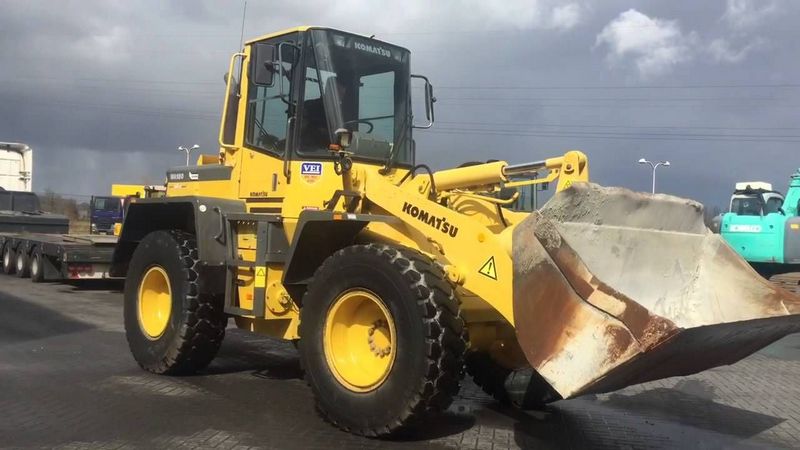

Komatsu WA180-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.47 ft in (2580 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.6 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | 20952.2 lb (93.2 kN) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 21.63 ft in (6590 mm) |
| Width Over Tires | 7.58 ft in (2310 mm) |
| Height To Top Of Cab | 10.16 ft in (3095 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Hinge Pin - Max Height | 11.62 ft in (3540 mm) |
| Reach At Max Lift And Dump | 3.58 ft in (1090 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102 E1 |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 307.6 lb ft (417 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 20569.2 lb (9330 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Static Tipping Weight | 17482.7 lb (7930 kg) |
| Turning Radius | 17.9 ft in (5430 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5 R25 |
Transmission
| Transmission Type | Fully automatic, full powershift with 'kick-down' system |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 38.1 gal/min (144 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.1 sec |
| Lower Time | 2.5 sec |
