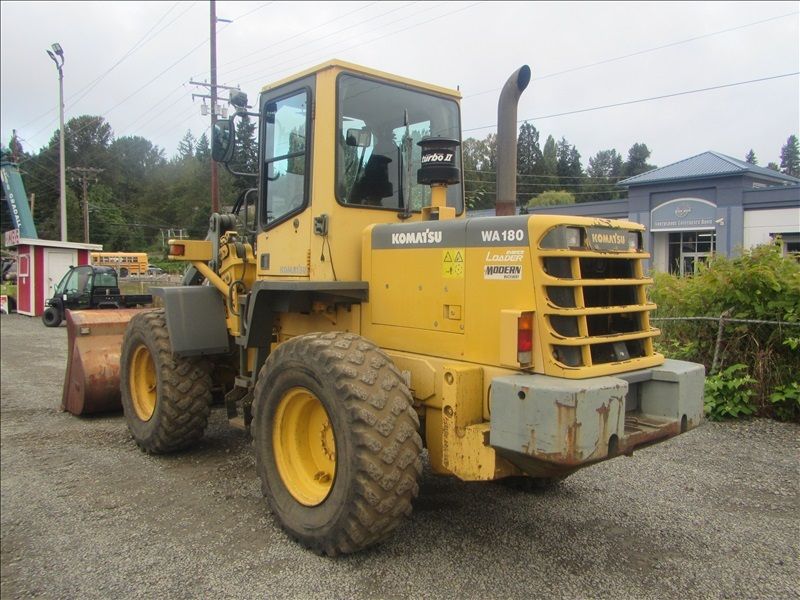

Komatsu WA180-3PT
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.6 ft in (2620 mm) |
| Bucket Capacity - Heaped | 2.1 yd3 (1.6 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | 19783.19 lb (88 kN) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 23.2 ft in (7070 mm) |
| Width Over Tires | 8.21 ft in (2500 mm) |
| Height To Top Of Cab | 16.61 ft in (5060 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Hinge Pin - Max Height | 12.34 ft in (3760 mm) |
| Reach At Max Lift And Dump | 3.61 ft in (1100 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102-E1 |
| Gross Power | 112 hp (83.6 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 307.6 lb ft (417 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbo |
Operational
| Operating Weight | 22586.4 lb (10245 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 10.9 gal (41 L) |
| Engine Oil Fluid Capacity | 5.2 gal (19.5 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.5 L) |
| Transmission Fluid Capacity | 6.3 gal (23.5 L) |
| Front Axle/Diff Fluid Capacity | 3.7 gal (14 L) |
| Rear Axle/Diff Fluid Capacity | 3.7 gal (14 L) |
| Static Tipping Weight | 15167.9 lb (6880 kg) |
| Turning Radius | 18.3 ft in (5570 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5 R 25 |
Transmission
| Transmission Type | Fully automatic, full powershift with 'kick-down' system |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 38.1 gal/min (144 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1.1 sec |
| Lower Time | 2.5 sec |
