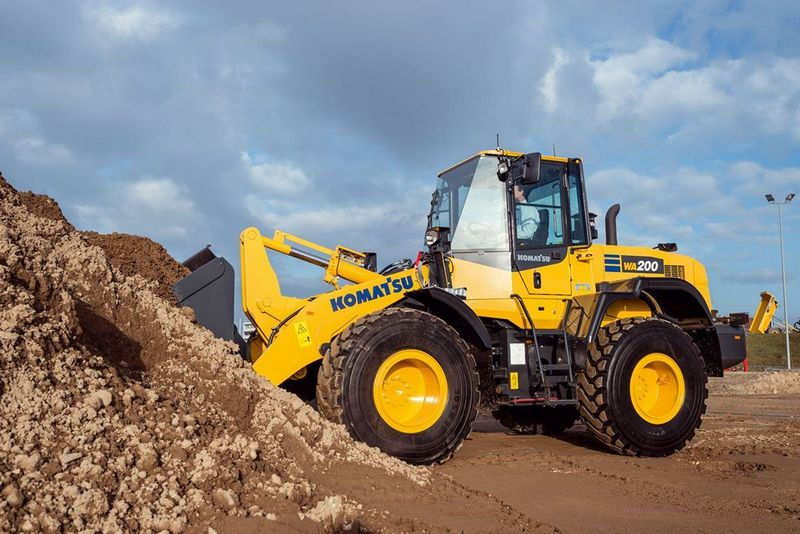

Komatsu WA200-7
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.73 ft in (2965 mm) |
| Bucket Width | 8.35 ft in (2545 mm) |
| Breakout Force | 24250.14 lb (107.87 kN) |
Dimensions
| Ground Clearance | 1.63 ft in (495 mm) |
| Length With Bucket On Ground | 23.27 ft in (7090 mm) |
| Width Over Tires | 8.11 ft in (2470 mm) |
| Wheelbase | 9.32 ft in (2840 mm) |
| Hinge Pin - Max Height | 12.75 ft in (3885 mm) |
| Reach At Max Lift And Dump | 3.12 ft in (950 mm) |
Engine
| Emissions Certification | IIIB/EPA Tier 4 interim |
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | SAA4D107E-2 |
| Net Power | 126 hp (94 kw) |
| Gross Power | 128 hp (95.5 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 272.2 cu in (4.5 L) |
| Aspiration | Turbocharged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 25342.2 lb (11495 kg) |
| Fuel Capacity | 46.8 gal (177 L) |
| Hydraulic System Fluid Capacity | 15.4 gal (58 L) |
| Engine Oil Fluid Capacity | 4.1 gal (15.5 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.6 L) |
| Transmission Fluid Capacity | 1.4 gal (5 L) |
| Front Axle/Diff Fluid Capacity | 4.9 gal (18.5 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Turning Radius | 16.1 ft in (4880 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Tire Size | 20.5 R25 |
Transmission
| Transmission Type | Electronically controlled hydrostatic transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 23.7 mph (38 km/h) |
Hydraulic System
| Relief Valve Setting | 20.6 Mpa |
| Pump Flow Capacity | 22.5 gal/min (85 L/min) |
| Raise Time | 5.7 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.2 sec |
| Pump Type | Gear type pump |
| System Pressure | 3000 psi (20684.3 kPa) |
