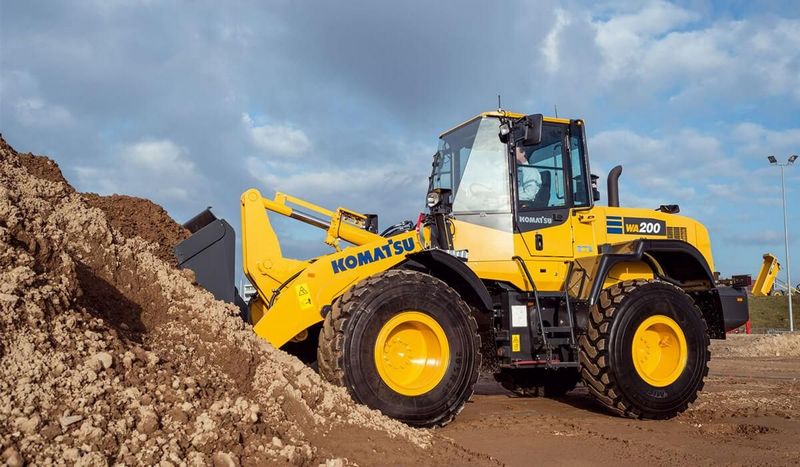

Komatsu WA200-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.25 ft in (2830 mm) |
| Breakout Force | 20944 lb (93.2 kN) |
| Bucket Capacity - Heaped | 2.6 yd3 (2 m3) |
| Bucket Capacity - Struck | 2.23 yd3 (1.7 m3) |
| Bucket Width | 8.33 ft in (2550 mm) |
Dimensions
| Ground Clearance | 1.67 ft in (495 mm) |
| Length With Bucket On Ground | 22.58 ft in (6895 mm) |
| Width Over Tires | 8.08 ft in (2470 mm) |
| Height To Top Of Cab | 10.42 ft in (3180 mm) |
| Wheelbase | 9.33 ft in (2840 mm) |
| Hinge Pin - Max Height | 12.17 ft in (3705 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D107E-1 |
| Net Power | 126 hp (94 kw) |
| Gross Power | 128 hp (95.2 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 272 cu in (4.5 L) |
| Aspiration | Turbo-charged |
Operational
| Operating Weight | 23259 lb (10550 kg) |
| Fuel Capacity | 46.8 gal (177 L) |
| Hydraulic System Fluid Capacity | 15.3 gal (58 L) |
| Engine Oil Fluid Capacity | 4.1 gal (15.5 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Front Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Static Tipping Weight | 21363 lb (9690 kg) |
| Turning Radius | 38.5 ft in (11700 mm) |
Transmission
| Transmission Type | Hydrostatic, 1 pump, 2 motors with speed range select |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.6 mph (38 km/h) |
| Max Speed - Reverse | 23.6 mph (38 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20600 kPa) |
| Pump Flow Capacity | 22.5 gal/min (85 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.6 sec |
| Pump Type | Gear type pump |
