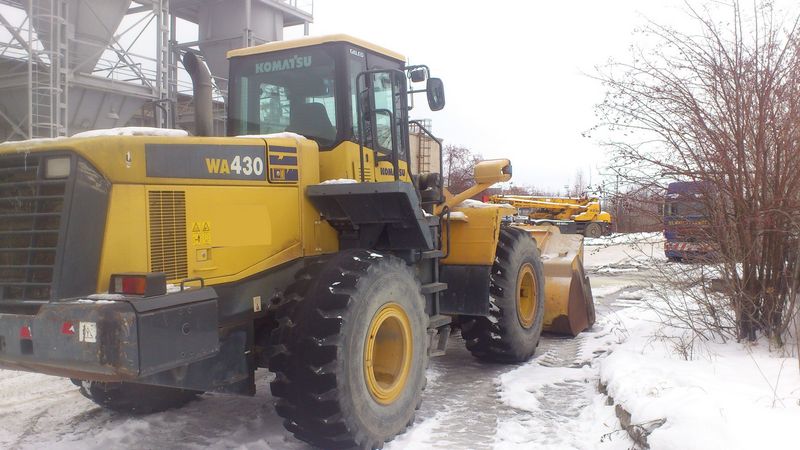

Komatsu WA430-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.85 ft in (3000 mm) |
| Breakout Force | _ - (195 kN) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Width | 10.18 ft in (3100 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 27.99 ft in (8530 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Wheelbase | 7.71 ft in (2350 mm) |
| Reach At Max Lift And Dump | 3.97 ft in (1210 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | SAA6D125E-3 |
| Net Power | 187.8 hp (140 kw) |
Operational
| Operating Weight | 40289.5 lb (18275 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Static Tipping Weight | 30589.2 lb (13875 kg) |
| Tire Size | 23.5X25 16PR L5 |
Transmission
| Transmission Type | full powershift counter shaft |
| Max Speed - Forward | 20.7 mph (33.2 km/h) |
| Max Speed - Reverse | 21.7 mph (34.9 km/h) |
