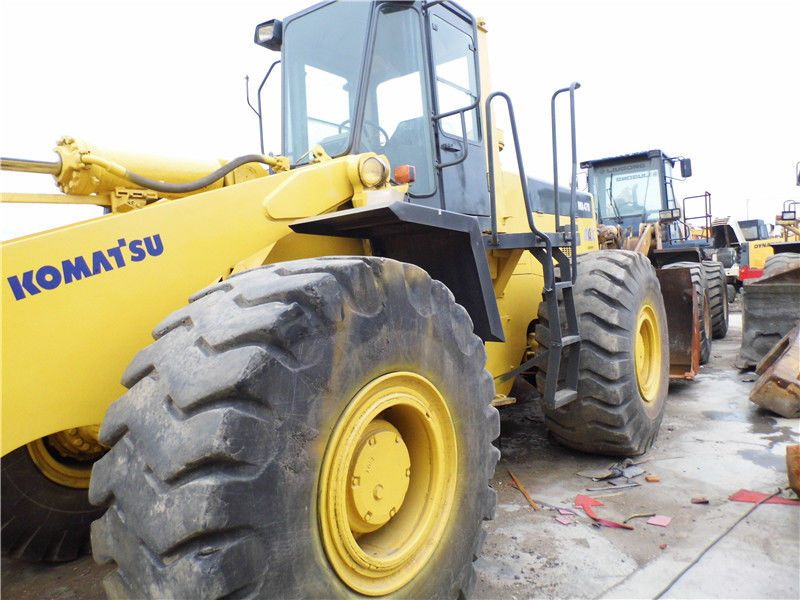

Komatsu WA470-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.24 ft in (3120 mm) |
| Bucket Capacity - Heaped | 5.5 yd3 (4.2 m3) |
| Bucket Capacity - Struck | 4.71 yd3 (3.6 m3) |
| Bucket Width | 10.41 ft in (3170 mm) |
| Breakout Force | 43200 lb (192.17 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 28.52 ft in (8690 mm) |
| Width Over Tires | 9.59 ft in (2920 mm) |
| Height To Top Of Cab | 11.14 ft in (3395 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 14.1 ft in (4295 mm) |
| Reach At Max Lift And Dump | 4.12 ft in (1255 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125 |
| Gross Power | 260.2 hp (194 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 671.3 cu in (11 L) |
Operational
| Operating Weight | 47641.9 lb (21610 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Static Tipping Weight | 36078.7 lb (16365 kg) |
| Turning Radius | 22.7 ft in (6890 mm) |
| Tire Size | 23.5-25-20PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.6 mph (31.5 km/h) |
| Max Speed - Reverse | 20.4 mph (32.7 km/h) |
