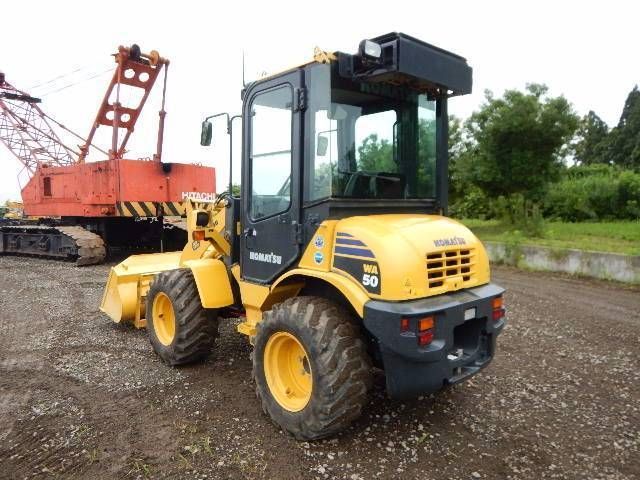

Komatsu WA50-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.13 ft in (2475 mm) |
| Bucket Width | 5.55 ft in (1690 mm) |
| Bucket Capacity - Heaped | 0.79 yd3 (0.6 m3) |
Dimensions
| Ground Clearance | 1.02 ft in (310 mm) |
| Length With Bucket On Ground | 15.03 ft in (4580 mm) |
| Width Over Tires | 5.42 ft in (1650 mm) |
| Height To Top Of Cab | 8.34 ft in (2540 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Hinge Pin - Max Height | 10.24 ft in (3120 mm) |
| Reach At Max Lift And Dump | 2.96 ft in (900 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D88E-6B |
| Net Power | 38.6 hp (28.8 kw) |
| Gross Power | 39.8 hp (29.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 135 cu in (2.3 L) |
Operational
| Operating Weight | 8432.7 lb (3825 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Hydraulic System Fluid Capacity | 11.1 gal (42 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Cooling System Fluid Capacity | 1.9 gal (7 L) |
| Front Axle/Diff Fluid Capacity | 1.3 gal (4.8 L) |
| Rear Axle/Diff Fluid Capacity | 1.2 gal (4.5 L) |
| Static Tipping Weight | 5688 lb (2580 kg) |
| Turning Radius | 12.6 ft in (3825 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Rear Axle Oscillation | 14 degrees |
| Tire Size | 15.5/60-18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 12.3 gal/min (46.5 L/min) |
| Raise Time | 5.7 sec |
| Dump Time | 1 sec |
| Lower Time | 3.5 sec |
