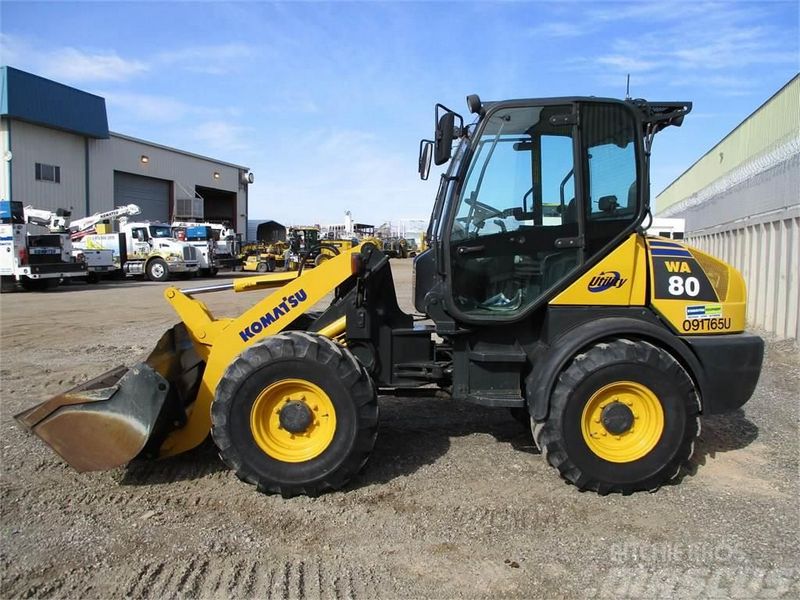

Komatsu WA80-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.92 ft in (2425 mm) |
| Bucket Capacity - Heaped | 1.17 yd3 (0.9 m3) |
| Bucket Width | 6.25 ft in (1915 mm) |
| Breakout Force | 10164 lb (4620 kN) |
Dimensions
| Ground Clearance | 1 ft in (300 mm) |
| Length With Bucket On Ground | 18 ft in (5480 mm) |
| Width Over Tires | 6.17 ft in (1875 mm) |
| Height To Top Of Cab | 8.75 ft in (2665 mm) |
| Wheelbase | 7.17 ft in (2200 mm) |
| Hinge Pin - Max Height | 10.5 ft in (3210 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D95-LE3 |
| Net Power | 60 hp (45 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 201 cu in (3.3 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 12434 lb (5640 kg) |
| Fuel Capacity | 22.2 gal (84 L) |
| Hydraulic System Fluid Capacity | 7.9 gal (30 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Cooling System Fluid Capacity | 2.4 gal (9.1 L) |
| Front Axle/Diff Fluid Capacity | 2.3 gal (8.6 L) |
| Rear Axle/Diff Fluid Capacity | 2.3 gal (8.6 L) |
| Static Tipping Weight | 9534 lb (4325 kg) |
| Turning Radius | 12.5 ft in (3825 mm) |
Transmission
| Transmission Type | Hydrostatic transmission, switchable in all directions under full power |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.6 mph (30 km/h) |
| Max Speed - Reverse | 18.6 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 3190 psi (- -) |
| Pump Flow Capacity | 15.1 gal/min (0.6 L/min) |
| Raise Time | 4.9 sec |
| Dump Time | 0.9 sec |
| Lower Time | 2.8 sec |
| Pump Type | Open hydraulic system |
