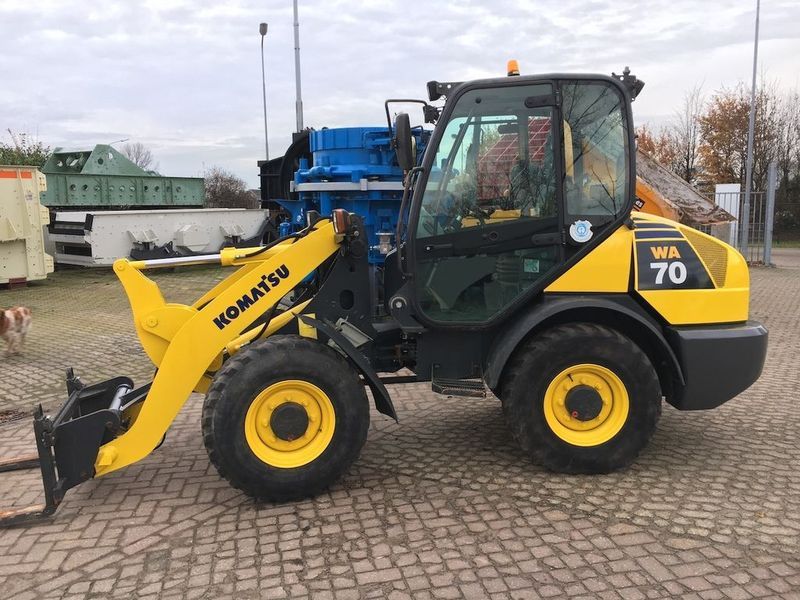

Komatsu WA70-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.67 ft in (2335 mm) |
| Bucket Capacity - Heaped | 1.11 yd3 (0.85 m3) |
| Bucket Width | 5.92 ft in (1800 mm) |
| Breakout Force | 8025 lb (3640 kN) |
Dimensions
| Ground Clearance | 1 ft in (305 mm) |
| Length With Bucket On Ground | 17.58 ft in (5360 mm) |
| Width Over Tires | 5.33 ft in (1625 mm) |
| Height To Top Of Cab | 8.08 ft in (2465 mm) |
| Wheelbase | 6.67 ft in (2050 mm) |
| Hinge Pin - Max Height | 10.25 ft in (3140 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D95-LE3 |
| Net Power | 60 hp (45 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 201 cu in (3.3 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 11155 lb (5060 kg) |
| Fuel Capacity | 21.4 gal (81 L) |
| Hydraulic System Fluid Capacity | 7.9 gal (30 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Cooling System Fluid Capacity | 2.4 gal (9.1 L) |
| Front Axle/Diff Fluid Capacity | 2.2 gal (8.4 L) |
| Rear Axle/Diff Fluid Capacity | 2.2 gal (8.4 L) |
| Static Tipping Weight | 8884 lb (4030 kg) |
| Turning Radius | 13.7 ft in (4175 mm) |
Transmission
| Transmission Type | Hydrostatic transmission switchable in all directions under full power |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.4 mph (20 km/h) |
| Max Speed - Reverse | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3300 psi (- -) |
| Pump Flow Capacity | 13.2 gal/min (0.5 L/min) |
| Raise Time | 5 sec |
| Dump Time | 0.9 sec |
| Lower Time | 3.4 sec |
| Pump Type | Open hydraulic system |
