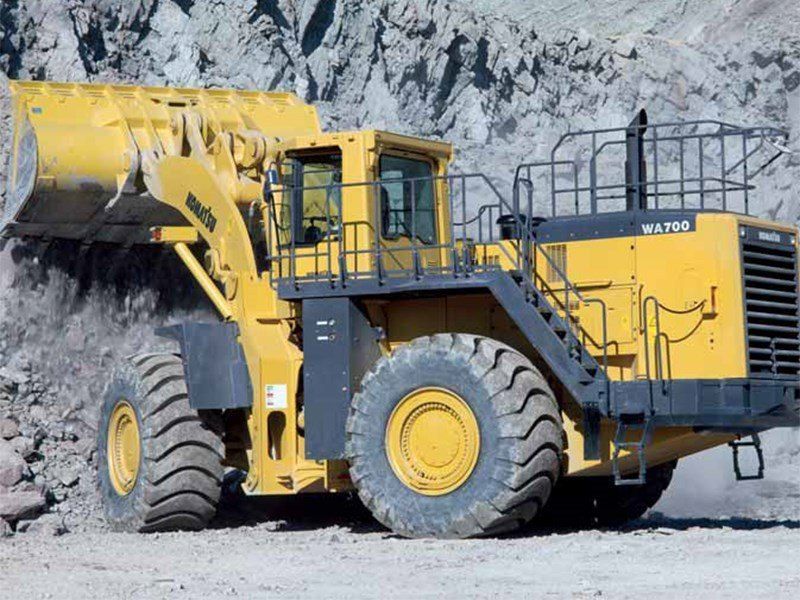

Komatsu WA700-3 With AJSS
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 14.18 ft in (4320 mm) |
| Bucket Capacity - Struck | 9.9 yd3 (7.57 m3) |
| Bucket Width | 15 ft in (4570 mm) |
| Bucket Capacity - Heaped | 11.4 yd3 (8.72 m3) |
Dimensions
| Ground Clearance | 1.91 ft in (580 mm) |
| Length With Bucket On Ground | 39.83 ft in (12140 mm) |
| Width Over Tires | 13.39 ft in (4080 mm) |
| Height To Top Of Cab | 15.85 ft in (4830 mm) |
| Wheelbase | 15.75 ft in (4800 mm) |
| Hinge Pin - Max Height | 21.63 ft in (6590 mm) |
| Reach At Max Lift And Dump | 6.21 ft in (1890 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D170E-3 |
| Net Power | 672 hp (501.2 kw) |
| Gross Power | 684 hp (510.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1412 cu in (23.2 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Operating Weight | 156570 lb (71019 kg) |
| Fuel Capacity | 290.6 gal (1100.1 L) |
| Hydraulic System Fluid Capacity | 124.2 gal (470.2 L) |
| Cooling System Fluid Capacity | 57.9 gal (219.2 L) |
| Transmission Fluid Capacity | 27.7 gal (104.9 L) |
| Front Axle/Diff Fluid Capacity | 64.7 gal (245 L) |
| Rear Axle/Diff Fluid Capacity | 64.7 gal (245 L) |
| Static Tipping Weight | 103240 lb (46828.9 kg) |
| Turning Radius | 27.2 ft in (8280 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 41.25/75-39 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 20.1 mph (32.3 km/h) |
Hydraulic System
| Relief Valve Setting | 4550 psi (31371.2 kPa) |
| Pump Flow Capacity | 107 gal/min (405.1 L/min) |
| Raise Time | 9.7 sec |
| Dump Time | 2.5 sec |
| Lower Time | 3.6 sec |
