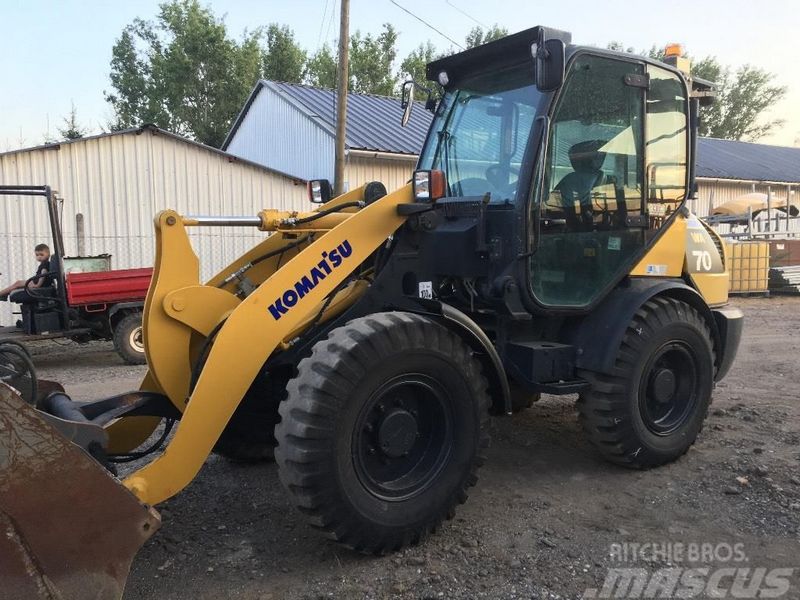

Komatsu WA70-6
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 1.12 yd3 (0.85 m3) |
Dimensions
| Ground Clearance | 1.01 ft in (305 mm) |
| Length With Bucket On Ground | 17.87 ft in (5445 mm) |
| Width Over Tires | 5.34 ft in (1625 mm) |
| Height To Top Of Cab | 8.09 ft in (2465 mm) |
| Wheelbase | 6.73 ft in (2050 mm) |
| Hinge Pin - Max Height | 10.34 ft in (3150 mm) |
| Reach At Max Lift And Dump | 3.07 ft in (935 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | 4D95LWE-5 |
| Gross Power | 60.3 hp (45 kw) |
| Torque | 154.9 lb ft (210 Nm) |
| Power Measured @ | 2.4 rpm |
| Torque Measured @ | 1.6 rpm |
| Bore | 3.8 in (95 mm) |
| Stroke | 4.6 in (115 mm) |
Operational
| Operating Weight | 11155.4 lb (5060 kg) |
| Fuel Capacity | 34.9 gal (132 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Fluid Capacity | 2 gal (7.5 L) |
| Cooling System Fluid Capacity | 2.5 gal (9.1 L) |
| Front Axle/Diff Fluid Capacity | 2.3 gal (8.4 L) |
| Rear Axle/Diff Fluid Capacity | 2.3 gal (8.4 L) |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 3.2 mph (5 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Pump Flow Capacity | 14.1 gal/min (53 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3 sec |
