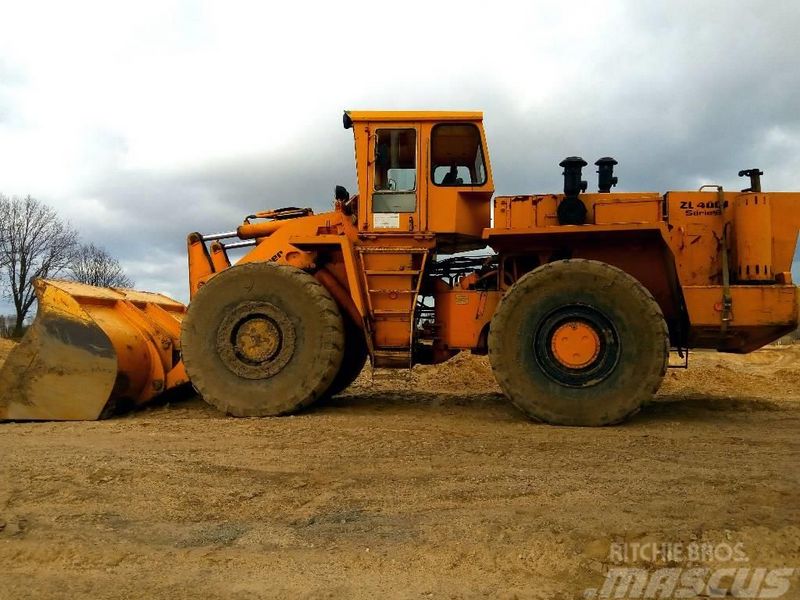

Zettelmeyer ZL4001B
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.08 ft in (3070 mm) |
| Breakout Force | 42713.7 lb (190 kN) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
| Bucket Capacity - Struck | 4.58 yd3 (3.5 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
Dimensions
| Ground Clearance | 1.74 ft in (530 mm) |
| Length With Bucket On Ground | 28.22 ft in (8600 mm) |
| Height To Top Of Cab | 11.67 ft in (3555 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 14.41 ft in (4390 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Number Of Cylinders | 10 |
| Engine Make | 2349 |
| Engine Model | F 10L 413F |
| Net Power | 269 hp (200.6 kw) |
| Gross Power | 302 hp (225.3 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 748.7 lb ft (1015 Nm) |
| Displacement | 973.6 cu in (16 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | direct |
Operational
| Operating Weight | 52470.1 lb (23800 kg) |
| Fuel Capacity | 111 gal (420 L) |
| Hydraulic System Fluid Capacity | 121.6 gal (460 L) |
| Engine Oil Fluid Capacity | 7.4 gal (28 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Front Axle/Diff Fluid Capacity | 11.1 gal (42 L) |
| Rear Axle/Diff Fluid Capacity | 11.1 gal (42 L) |
| Static Tipping Weight | 42769.7 lb (19400 kg) |
| Turning Radius | 22.7 ft in (6900 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 26.5-25PR(L2) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic System
| Relief Valve Setting | 2610 psi (17995.4 kPa) |
| Pump Flow Capacity | 99.9 gal/min (378 L/min) |
| Raise Time | 6.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 4.6 sec |
| Pump Type | gear tandem |
