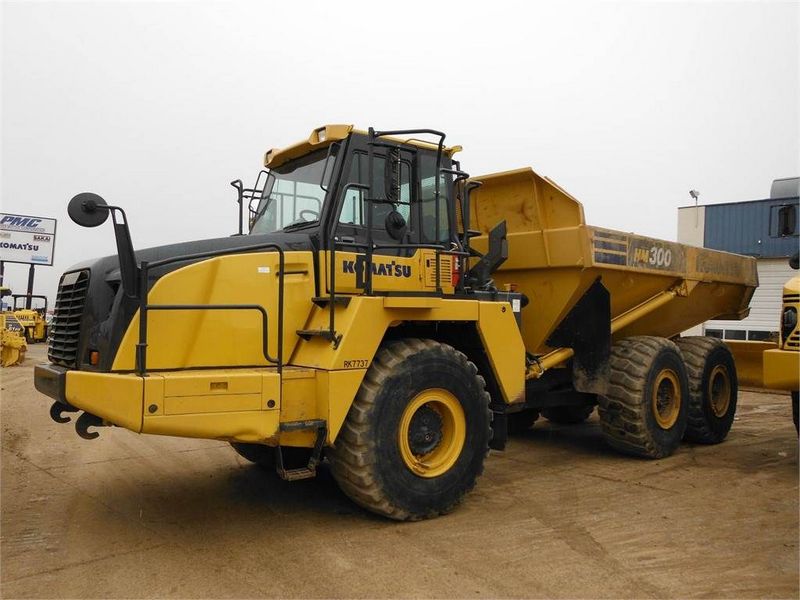

Komatsu HM300-3
Browse All Komatsu or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 33.8 ft in (10302.24 mm) |
| Overall Width | 11.6 ft in (3535.68 mm) |
| Overall Height | 21.4 ft in (6522.72 mm) |
| Wheelbase | 7.6 ft in (2316.48 mm) |
| Ground Clearance | 9.6 ft in (2926.08 mm) |
| Dump Height | 9.31 ft in (2834.64 mm) |
| Dump Ground Clearance | 5.7 ft in (1737.36 mm) |
Dump
| Dump Angle | 45 degrees |
| Lower Time | 10.5 sec |
| Rated Payload | 30.9 lb (14.02 kg) |
| Capacity - Struck | 17.5 yd3 (13.38 m3) |
| Raise Time | 10.5 sec |
| Capacity - Heaped | 22.4 yd3 (17.13 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D125E-6 |
| Gross Power | 332 hp (247.6 kw) |
| Net Power | 324 hp (241.7 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1239 lb ft (1679.9 Nm) |
| Aspiration | Komatsu Variable turbo charge |
| Displacement | 11.1 cu in (0.2 L) |
Operational
| Fuel Capacity | 102.6 gal (388.4 L) |
| Hydraulic System Fluid Capacity | 27.2 gal (103 L) |
| Cooling System Fluid Capacity | 25.9 gal (98.1 L) |
| Engine Oil Capacity | 9.2 gal (34.9 L) |
| Transmission Fluid Capacity | 25.9 gal (98.1 L) |
| Tire Size | 23.5 R25 |
Transmission
| Transmission Type | Auto |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 36.4 mph (58.6 km/h) |
Weights
| Total Empty | 54917 lb (24910 kg) |
| Total Loaded | 116823 lb (52990.1 kg) |
