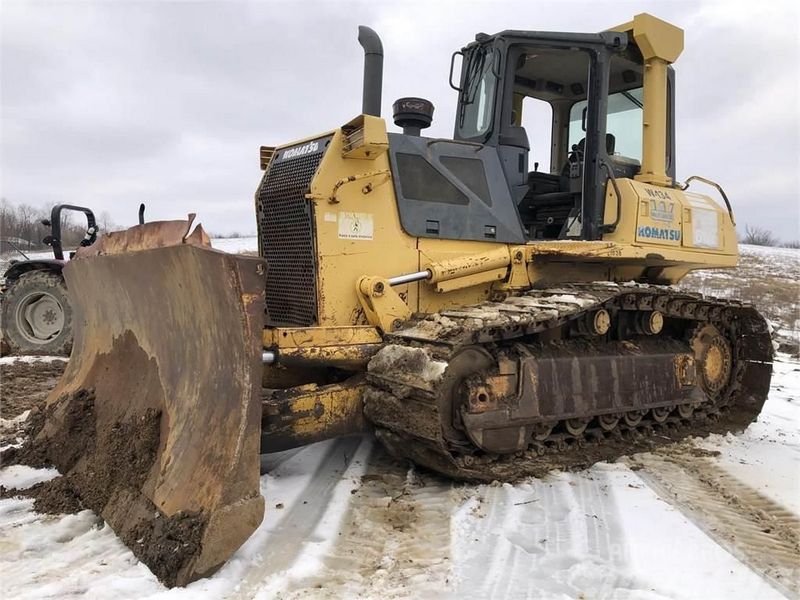

Komatsu D61EX-15
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.51 ft in (5030 mm) |
| Height To Top Of Cab | 10.33 ft in (3150 mm) |
| Length Of Track On Ground | 16.5 ft in (5030 mm) |
| Ground Clearance | 1.33 ft in (395 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Ground Pressure | 7.68 psi (53 kPa) |
| Ground Contact Area | 4836 in2 (3.12 m2) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D107E-1 |
| Gross Power | 170 hp (127 kw) |
| Net Power | 168 hp (125 kw) |
| Displacement | 408 cu in (6.7 L) |
| Aspiration | Turbocharged, air-to-air aftercooled |
Operational
| Operating Weight | 36840 lb (16710 kg) |
| Fuel Capacity | 103 gal (390 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Engine Oil Capacity | 7.7 gal (29 L) |
| Final Drives Fluid Capacity | 7.5 gal (28.5 L) |
Transmission
| Transmission Type | planetary gear, multiple-disc clutch transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.4 mph (8.7 km/h) |
| Max Speed - Reverse | 6.8 mph (11 km/h) |
Hydraulic System
| Pump Type | Double-acting, piston |
| Pump Flow Capacity | 51.5 gal/min (195 L/min) |
Standard Blade
| Width | 10.7 ft in (3250 mm) |
| Height | 392 in (1200 mm) |
